The Role of the Modern Tablet Press in Creating the Perfect Tablet

Introduction

In the world of pharmaceuticals, the humble tablet is a marvel of precision engineering. From delivering life-saving medication to providing daily vitamins, its effectiveness hinges on being created perfectly, every single time. But what does it take to transform a fine powder into a flawless, consistent, and effective tablet? The journey is a blend of material science, mechanical precision, and meticulous quality control, with the tablet press at its very heart.

At Grandpackmachine, we believe that understanding the process is key to achieving excellence. This comprehensive guide will delve into the critical factors for pressing the perfect tablet, exploring the science behind the process, and showcasing how advanced machinery, like the Grand tablet press series, makes it possible.

The Foundation: It All Begins with the Formulation

Before a single tablet is pressed, a significant amount of work goes into the powder formulation. You cannot press a perfect tablet from a flawed powder. The physical properties of the powder blend are critical for success. Key characteristics include:

• Flowability: The powder must flow consistently and uniformly from the hopper into the die cavities of the tablet press. Poor flowability leads to variations in tablet weight and, consequently, inaccurate dosage. As highlighted in a study on powder characterization in the Pharmaceutical Technology journal, "The transformation of a relatively free-flowing powder into a compressed solid form" is the essence of tablet production. Excipients like glidants are often added to improve this.
• Compressibility: This is the ability of the powder to be reduced in volume under pressure. The material must form a stable, compact mass without sticking to the machine's tooling.
• Cohesiveness: The powder particles must cohere sufficiently to form a strong tablet that can withstand the rigors of handling, packaging, and transportation.

Achieving this perfect balance often requires granulation, a process where powder particles are bound together to form larger, more uniform granules, significantly improving both flowability and compressibility.

The Heart of Production

While single-punch presses exist, modern pharmaceutical production relies on the efficiency and precision of the rotary tablet press. This sophisticated machine is the engine room of tablet manufacturing, designed for high-volume, high-precision output.

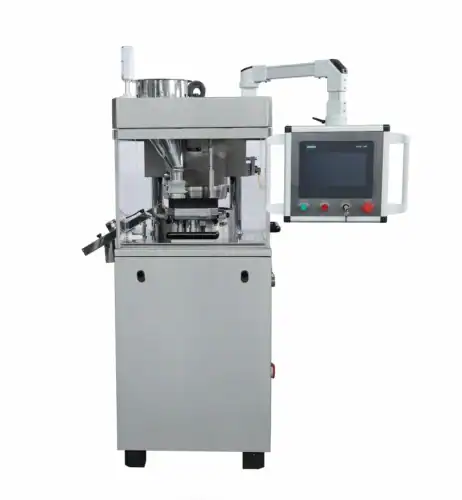

As seen in Grandpackmachine's advanced models, a rotary tablet press operates on a principle of continuous motion. A rotating turret holds a series of dies and punches. The process can be broken down into three key stages:

1. Die Filling: As the turret rotates, the lower punches are lowered within the dies, creating a cavity. The powder formulation flows from a hopper into a feed frame, which guides the material over the dies, filling the cavities. The precision of this filling stage is paramount for ensuring dose uniformity. The sophisticated feeders on Grand tablet press machines are designed for consistent and accurate fills, even at high speeds.
2. Compression: The turret carries the filled dies and lowered punches towards a set of large compression rollers. Simultaneously, the upper punches descend into the dies. The punches, with the powder trapped between them, pass between the pre-compression and main compression rollers. These rollers exert immense, precisely controlled force, compacting the powder and fusing the granules into a solid tablet. A 2021 study on tablet compression optimization published in the International Journal of Pharmaceutical Sciences Review and Research emphasizes that "process operating parameters significantly affect tableting quality." This is why the advanced control systems on our machines, often featuring Siemens HMIs as shown, allow for minute adjustments of these forces to achieve the desired tablet hardness and characteristics.
3. Ejection: After passing the main compression roller, the upper punches retract, and the lower punches are lifted within the dies. This action pushes the newly formed tablet out of the die and onto the machine's surface, where it is guided into a discharge chute.

This entire cycle happens at incredibly high speeds, with modern presses like those from Grandpackmachine capable of producing hundreds of thousands of tablets per hour. The precision engineering of the turret, punches, and dies, as seen in the detailed close-ups of our machinery, is crucial to ensuring that every single tablet meets the same specifications for size, shape, and weight.

Perfecting the Tablet Post-Compression

Pressing the tablet is a critical step, but the process isn't complete upon ejection. Freshly pressed tablets are often covered in a fine layer of dust and may have small burrs on their edges. This is where auxiliary equipment plays a vital role.

An uphill tablet deduster is an essential piece of post-compression equipment. As tablets are discharged from the press, they are gently vibrated and elevated along a spiral path. This action, often aided by jets of clean air and a vacuum system, effectively removes surface dust and polishes the tablet edges.

Our integrated systems, like the GZPK-32 model shown connected to its deduster, ensure a seamless transition from compression to finishing. This not only results in a clean, elegant final product but also prevents cross-contamination and issues in subsequent processes, such as coating and packaging.

Key Quality Attributes

The "perfect" tablet is defined by a set of Critical Quality Attributes (CQAs) that ensure its safety, efficacy, and stability. Throughout the manufacturing process, a Grand tablet press is designed to control the variables that influence these CQAs:

• Weight Uniformity: The most fundamental CQA. Consistent weight is a direct indicator of a consistent dose of the Active Pharmaceutical Ingredient (API). This is controlled by the precise and uniform filling of the die cavities.
• Hardness: The tablet must be hard enough to resist breaking during transport but soft enough to disintegrate correctly in the body. Compression force is the primary control for this attribute.
• Thickness: Directly related to the amount of fill and the compression force, consistent thickness is important for both dosage and packaging.
• Friability: This measures a tablet's tendency to chip or crumble. It's a test of the tablet's overall robustness, influenced by formulation and compression force. Low friability is essential.
• Disintegration and Dissolution: This is the ultimate test. The tablet must break down and release its active ingredient at the correct rate within the body. While heavily dependent on the formulation, incorrect compression (either too high or too low) can negatively impact these critical release profiles.

By providing operators with robust construction, precision tooling, and sophisticated digital control over parameters like turret speed, fill depth, and compression forces, Grandpackmachine empowers manufacturers to consistently hit these critical quality targets, batch after batch.

Conclusion

Pressing the perfect tablet is a complex synergy of formulation science and mechanical precision. It demands a deep understanding of powder dynamics and machinery that can translate that understanding into tangible, repeatable results. From scalable R&D presses to high-output production models, every Grand tablet press is engineered to provide the control, reliability, and precision you need to overcome manufacturing challenges. By focusing on robust design, advanced control systems, and integrated solutions like the uphill tablet deduster, we provide the tools you need to turn expertly crafted formulations into perfect tablets that improve lives.

Frequently Asked Questions (FAQs)

1. What is the most common cause of tablet weight variation, and how can your machines help solve it?

The most common cause of tablet weight variation is inconsistent powder flow from the hopper into the die cavities. If the powder doesn't flow uniformly, some dies will receive more powder than others, resulting in inconsistent tablet weights and incorrect dosages. Grandpackmachine tablet presses address this with precision-engineered feed frames and hopper systems that promote consistent, even powder flow. Furthermore, our advanced systems can be equipped with automated weight monitoring and rejection systems that can measure tablet weight in real-time and automatically discard any tablets that fall outside the specified range, ensuring 100% quality control.

2. My current process is suffering from "capping" and "lamination." What are these, and how can a better tablet press help?

Capping is when the top of the tablet separates horizontally, while lamination is when the tablet separates into two or more distinct layers. A primary cause of both issues is the entrapment of air within the powder during compression. As the air tries to escape rapidly, it pushes the tablet layers apart. Grand tablet press machines are designed with features like pre-compression rollers. These apply an initial, lighter force to the powder, which consolidates the granules and pushes out trapped air before the main, high-force compression event. This significantly reduces the chances of capping and lamination, leading to stronger, more reliable tablets.

3. Why is an uphill tablet deduster better than a simple vibratory sieve?

While a simple vibratory sieve can remove some dust, an uphill tablet deduster offers several key advantages. The uphill spiral path increases the residence time of the tablets in the machine, allowing for more thorough dust removal and edge deburring. The gentle tumbling motion polishes the entire surface of the tablet, not just one side. Most importantly, modern uphill dedusters from Grandpackmachine integrate air jets and vacuum extraction, which actively lift dust away from the tablets, preventing it from resettling. This combined action results in a significantly cleaner, smoother, and more professional final product, ready for coating or packaging.
