9 Essential Parts of a Cartoning Machine You Didn’t Know
Summary
In today’s fast-paced and highly competitive pharmaceutical industry, production efficiency can mean the difference between success and failure for many companies. One of the most crucial pieces of equipment on a modern drug production line is the cartoning machine. This innovative machine significantly boosts both the efficiency and quality of medicine box packing. Whether you are a seasoned user or considering investing in a new machine, this guide will walk you through the vital components of a cartoning machine, ensuring you make a more informed decision when selecting your packaging equipment.
What Is a Cartoning Machine?
A Cartoning Machine – sometimes simply referred to as a cartoner – is an integrated piece of machinery that combines pneumatic, electrical, and optical technologies to create high-quality packaging for medicines and other products. In the world of packaging, the cartoning machine is a game changer in the automation of medicine box packing, offering superior efficiency over manual methods.
💡 Quick Fact: A modern cartoning machine streamlines the packaging process by folding, forming, and sealing boxes with remarkable precision, making it an essential asset in pharmaceutical production.
Grand highly automated Cartoner Machine
Key Components of a Cartoning Machine
Before diving into the details of each part, let’s take a glance at the overall structure of a typical cartoning machine. A standard model consists of a robust machine frame, integrated feeding systems, and a powerful control panel. Here, we detail the nine most important components that contribute to the machine’s smooth operation:
1. Robust Machine Frame 🏗️
The machine frame is the backbone of the cartoning machine. Typically built from durable stainless steel, this frame not only provides structural support but also shields the sensitive internal components. The strength of the frame ensures stability during high-speed operations, a key factor in achieving reliable medicine box packing outcomes.

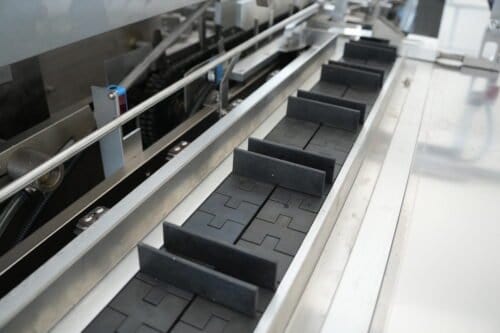

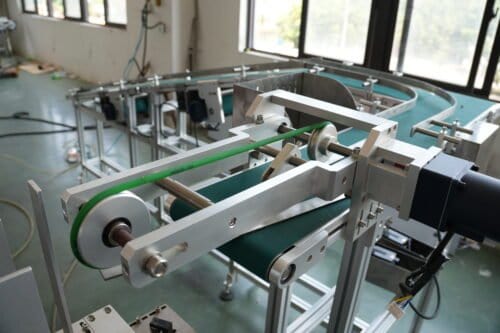

2. Feeding and Conveyor System 🚚
The feeding system of the cartoning machine comprises two critical parts: the feeder and the conveyor belt. Driven by a three-phase asynchronous motor, the feeder ensures a continuous and precise supply of cartons. The conveyor belt, usually powered by chain-drive mechanisms, aligns the cartons perfectly before they proceed to the next stage. Adjustable feeder slots allow the machine to accommodate various box sizes seamlessly.

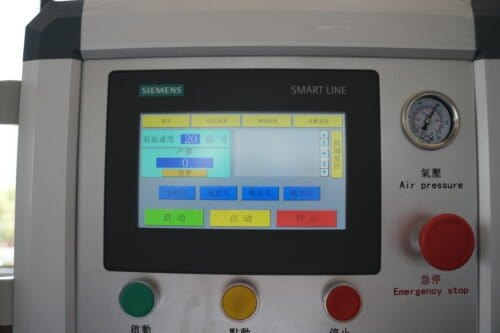

3. Intuitive Control Panel 🎛️
Modern cartoning machines are controlled via a user-friendly HMI control panel. This panel allows operators to adjust key settings such as the position of suction cups and the feeding location. With clear parameter displays, the control panel is vital for ensuring that each cycle of the cartoner is optimized for maximum efficiency and minimal waste.

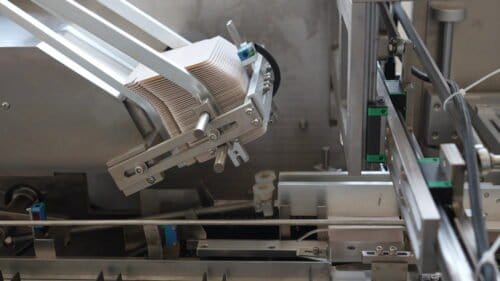

4. Carton Magazine and Storage 🗄️
The carton magazine plays a pivotal role in medicine box packing. This storage section is designed to hold blank cartons before they are fed into the machine. Adjustable compartments within the magazine allow for easy accommodation of different carton sizes, offering flexibility when switching between products.
5. Suction Cup Assembly 👐
The suction cup mechanism is essential for the precise handling of cartons. Using a vacuum pump, the cartoner accurately picks up a carton and positions it for further processing. The process triggers sensors that confirm each carton is properly aligned, ensuring no errors occur during the pack-off stage.
6. Folding Unit 📄
After the carton is correctly positioned, the folding unit takes over. This assembly uses specially designed rotating clamps to fold the carton flaps into the proper shape. To maintain consistency, the cartoning machine is fitted with guide devices that keep the carton steadily in place during the folding process, further enhancing the quality of the final pack.
7. Pusher Unit 🚀
One of the most critical components in a cartoner is the pusher unit. This part consists of a combination of lift, lateral, and swinging cam mechanisms that work together to move the filled cartons along the production line. With interchangeable pusher heads, the unit can handle various types of bottles and leaflets – making it an incredibly versatile part of the machine.
8. Sealing Unit 🔒
The sealing unit is responsible for the final closure of the carton. It typically consists of two subcomponents: a small tongue fold mechanism and a large tongue sealing mechanism. The sealing process is driven by the main spindle, which works in sync with cam systems to ensure that each carton is securely and neatly sealed.
9. Output and Rejection System 📤
Last but not least, the finished cartons are directed to the output unit. This module usually consists of a conveyor belt paired with a rejection mechanism. If any cartons fail quality checks, the rejection system – often powered by pneumatic cylinders – automatically diverts the defective cartons away, ensuring that only perfectly packed medicine boxes make it to the next stage.
Maintenance Tips from Packaging Experts
Maintaining your cartoning machine in peak condition is essential for consistent performance and longevity. Here are some expert tips:
Daily Cleaning: After each production run, wipe down the machine’s surface with a clean cloth to prevent the build-up of dust and debris.
Lubricate Moving Parts: Regular lubrication of cams and conveyor chains can significantly reduce wear and tear.
Quarterly Inspections: Every three months, inspect all moving components and fasteners to ensure everything is tightly secured and properly adjusted.
Monitor Wear Parts: Regularly check critical wear items and replace them when necessary to avoid unexpected downtime.
Electrical Checks: Ensure all wiring is secure, and use compressed air to clear dust from electrical components.
Technical Support: For any maintenance issues beyond routine tasks, consult your machine supplier’s technical support – remember, Grand Cartoning Machine service is industry-renowned for its reliability and support.
Why Choose a Grand Cartoning Machine?
Among the various cartoners on the market, the Grand Cartoning Machine stands out as a leader in the field. Renowned for its technological advancements and robust design, Grand offers superior performance and reliability. Here’s why it’s the top choice for medicine box packing:
High-Efficiency Performance: The Grand Cartoning Machine is engineered for speed and precision, ensuring seamless packaging for pharmaceutical products.
Advanced Automation: Its comprehensive control system minimizes operator error and maximizes production uptime.
Versatility: Whether you’re operating a cartoner or a Blister Packaging Machine, the Grand machine adapts to different products and packaging requirements.
Customer Support: With exceptional technical and after-sales service, Grand stands behind its equipment, making it a trusted choice for businesses in the pharmaceutical industry.
Conclusion
A high-quality cartoning machine is essential in today’s pharmaceutical production line. Understanding the nine critical components—from the robust machine frame to the efficient output system—helps you grasp how a Cartoning Machine operates and why it is vital for effective medicine box packing. Optimizing your packaging process with reliable equipment, like the industry-leading Grand Cartoning Machine, can transform production efficiency and product quality. Whether you’re a long-time operator or considering a new investment, these insights on cartoner parts and maintenance tips are indispensable for making an informed decision.
Embrace innovation in your production process and stay ahead in this competitive industry. With a state-of-the-art machine and proactive maintenance, your packaging line can consistently deliver high-quality products that meet industry standards.
