Pharmaceutical Tablet Coating Machine

The GRAND-B-80E and 150E coating machines are efficient, compact systems for pharmaceutical and food product coatings.

Pharmaceutical Tablet Coating Machine

This Pharmaceutical Tablet Coating Machine Combination is mainly used for applying various protective and functional coatings to tablets, pills, and candies across pharmaceutical, food, and biotech industries.

pillpills

Pharmaceutical Tablet Coating Machine Features:

High Efficiency and Quality:
The Grand-B film coating machine is designed to optimize efficiency. It shortens coating times, which increases productivity and improves quality

Advanced Control System:
With its PLC control and easy-to-use touchscreen, the Grand-B automates key settings like air pressure, temperature, and drum speed.

Versatile Coating Options:
The machine can apply organic, aqueous, or sugar coatings, making it versatile. It’s suitable for coating tablets, pills, and candies, useful in pharmaceuticals, food, and biotech.

Compact and Compliant Design:
The Grand-B features a compact, space-saving design that meets CE and GMP standards

Specifications

ItemGRAND-B-80EGRAND-B-150E
Max. Capacity80L / time150L / time
Coating Pan Diameterφ930mmΦ1200mm
Charging Mouth Diameterφ380mmΦ475mm
Coating Pan Speed1-19 r.p.m0-16 r.p.m
Main Machine Power1.5 kW2.2 kW
Exhaust Cabinet Power2.2 kW5.5 kW
Exhaust Cabinet Air Flow5268 m³/h7419 m³/h
Hot Air Motor Power0.75 kW1.5 kW
Air Inlet Cabinet Air Flow2356 m³/h2356 m³/h
Hot Air Temperature Range~80℃~80℃
Hot Air Purification Efficiency100,000 levels100,000 level
Peristaltic Pump Power0.37 kW0.37 kW (0.55 kW)
Silicone Pipe Wall Thickness1.6-2.2 mmφ9×3.5
Main Machine Dimensions (L×W×H)1370×1030×1950 mm1730×1320×2030 mm
Main Machine Weight600 kg850 kg
Air Inlet Cabinet Dimensions (L×W×H)1000×900×2170 mm900×800×2030 mm
Air Inlet Cabinet Weight450 kg480 kg
Exhaust Cabinet Dimensions (L×W×H)900×820×2000 mm950×950×1950 mm
Exhaust Cabinet Weight500 kg550 kg
Purified Air Pressure≥0.4 MPa0.4 MPa
Air Consumption0.4 m³/min1 m³/min
Water Pressure≥0.15 MPa0.15 MPa
Water Pipe Diameter1″1 1/2″
Steam Heating Pressure≥0.4 MPa0.4 MPa
Steam Consumption80 kg/h80 kg/h
Steam Heating PowerThree-phase, five-wire, 6 kWThree-phase, five-line 10 kW
Electric Heating PowerThree-phase, five-wire, 32 kWThree-phase, five-line 38 kW

Why Choose Us

  • Basic working principle
  • Coating machine coating samples
  • Internal structure of coating machine

Innovative Customization

We tailor our coating machines to meet specific industry needs, from pharmaceutical controlled-release applications to versatile coatings for food and biotech.

Trusted Quality and Certifications

Recognized as a Zhejiang Province Key Technology product, our machines have passed rigorous evaluations and approved international CE and GMP standards.

Comprehensive After-Sales Support

We offer full support, from installation to training, ensuring seamless integration and optimal performance for every customer.

Commitment to Sustainable Solutions

Our efficient design minimizes energy consumption and environmental impact, helping customers achieve production goals sustainably.

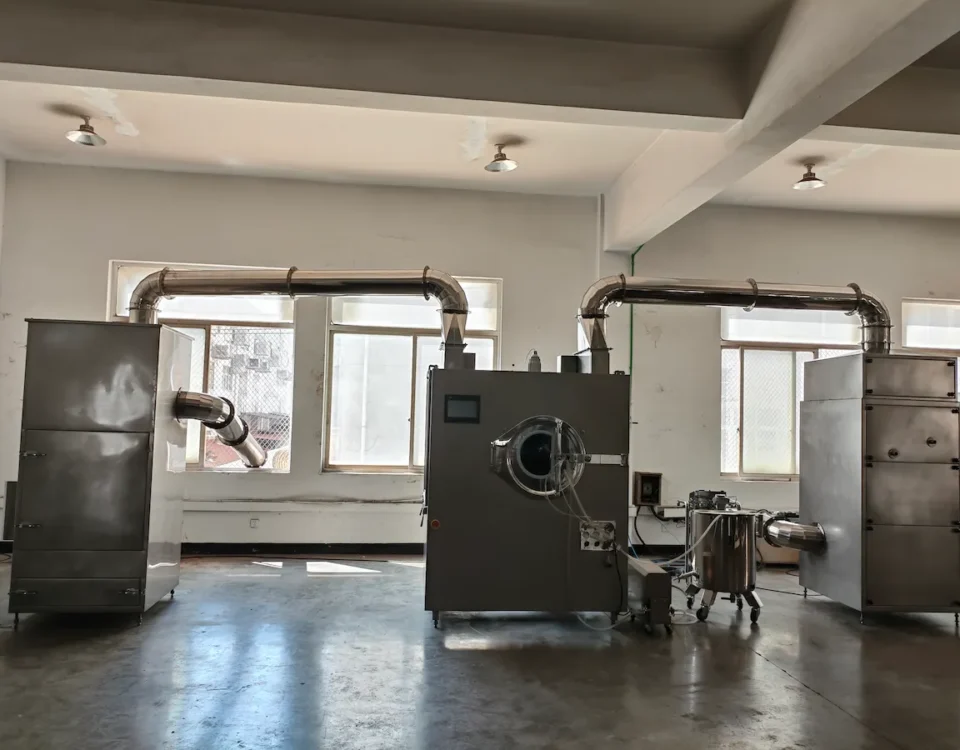

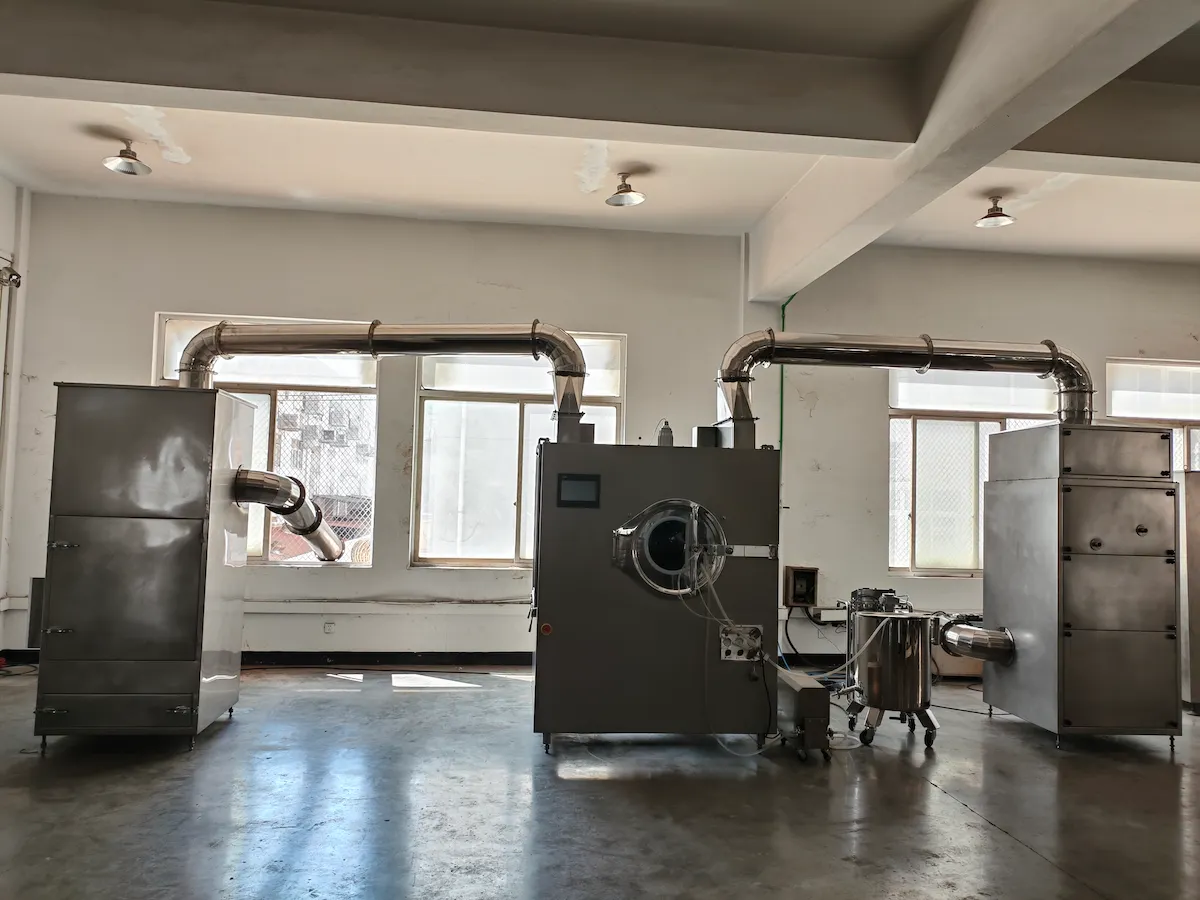

Main components

Major Machine

Main Machine
The film coating system minimizes dust and syrup splash, enhancing cleanliness and operational conditions.

Hot Air Cabinet

Hot Air Cabinet
This air filtration cabinet purifies, heats, and supplies clean air to the coating drum, ensuring a controlled coating environment.

Air Exhaust Cabinet

Air Exhaust Cabinet
Maintains negative pressure in the coating chamber, providing dust removal and exhaust filtration.

Thermal Stirring Drum

Thermal Stirring Drum
This thermal stirring drum heats and mixes materials evenly with precise, automatic temperature control up to 80°C.

Pharmaceutical Tablet Coating Machine FAQS

1What types of coatings can the Grand-B coating machines apply, and what products are they suitable for?
The Grand-B-80E and Grand-B-150E models can apply organic, water-soluble, and sugar coatings. These machines are versatile, making them ideal for coating tablets, pills, and candies across pharmaceutical, food, and biotech industries.
2How does the Grand-B coating machine control the coating process, and is it suitable for consistent, large-scale production?
Equipped with an advanced PLC system and a Siemens 7-inch touch screen, the machines allow precise control over temperature, air pressure, and pan speed.
3What are the delivery, warranty, and installation support details for these machines?
Delivery is typically within two months after payment. Both models come with a one-year warranty from arrival. While installation isn’t included, technician support is available upon request, with additional travel and accommodation fees if required.
4What Are the Key Features of Your Tablet Press Machines?
Our tablet press machines offer high-speed operation, up to 350 tablets per minute. They are made with durable components from reputable brands and are suitable for multiple industries.
