The Ultimate Guide to Capsule Polishing Machines
Introduction
In today's fast-paced pharmaceutical industry, ensuring that every capsule meets high quality standards is more important than ever. A state-of-the-art capsule polishing machine not only enhances the visual appeal of capsules but also improves their overall functionality and safety. This guide will explore the inner workings, key features, and integration of capsule polishers with other essential equipment—such as capsule filling machines and metal testing machines—while emphasizing the use of high-quality 316L material and strict GMP compliance.
Overview of Capsule Polishing Machines
A capsule polishing machine is designed to perform three primary functions: polishing, lifting, and sorting. The DG-150A capsule polisher, for example, has revolutionized the industry by integrating these functions into one compact unit. In this machine, filled capsules are first fed into a polishing barrel where they are gently polished by a rotating brush. The machine then lifts and directs the polished capsules to an integrated sorter, which uses compressed air to automatically separate capsules based on quality parameters. This online production mode facilitates seamless integration with capsule filling machines at the inlet and with metal testing machines and appearance inspection devices at the outlet.
Single Head Capsule Polishing Machines Composition Structure Diagram
Key Features and Advantages
The design of modern capsule polishing machines incorporates several innovative features. First and foremost, the machine is built using components that come in direct contact with the capsules—such as the main shaft, polishing barrel, feed and discharge ports, and sorting channel—crafted from 316L stainless steel. This material is renowned for its corrosion resistance, durability, and suitability for pharmaceutical applications, ensuring that the equipment complies with stringent GMP standards.
Grand Double Head Capsule Polishing Machines
Another significant advantage is the machine’s user-friendly design. With a quick-filling structure, the device is easy to disassemble and clean, eliminating dead corners and ensuring thorough sanitation. The inlet and outlet of the machine can be adjusted 360 degrees to optimize production layout and save valuable floor space in busy manufacturing environments.
| Model | DGLFP-150A |
|---|---|
| Applicable Capsule Models | 00#, 0#, 1#, 2#, 3#, 4# |
| Max. Production Efficiency | 300,000 pcs/h |
| Power Index | 220V 50Hz 1PH 0.40kW |
| Compressed Air | 0.3m³/min 0.3Mpa |
| Vacuum Cleaning | 3.0 m³/min -0.01Mpa |
| Dimensions | 740 x 490 x 1500 mm |
| Weight | 76 kg |
Working Principle
The operating principle of a capsule polishing machine is both elegant and efficient. Filled capsules are introduced into the polishing barrel through the inlet, where a rotating brush makes contact with the capsule surfaces for 360 degrees of polishing. A spiral steel wire embedded in the barrel wall drives the capsules along a predetermined path while a dust-suction device immediately removes any polishing debris. Once the capsules exit the polishing barrel, they enter the capsule sorter. Under the influence of compressed air, the sorter automatically distinguishes between capsules with light content, empty shells, debris, and those with a separation of body from cap. This sorting process not only enhances quality control but also ensures that only capsules meeting specific criteria continue to the next production stage.
Horizontal capsule polishing machine - can effectively remove dust on the surface of capsules, improve smoothness and eliminate static electricity, suitable for all types of capsules.
The process can be described mathematically by the equation: Q = (P × T) / A where Q represents the quality output (or degree of polishing), P is the applied polishing pressure, T is the duration of the polishing process, and A denotes the surface area of the capsule. By optimizing these parameters, manufacturers can achieve uniform, high-quality polishing results that meet both aesthetic and functional requirements.

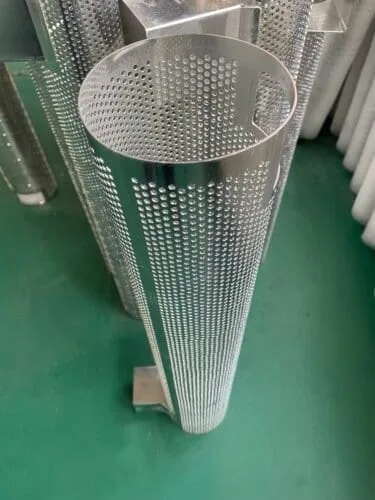

Capsule Polishing Machines Internal screen part
Integration with Other Production Equipment
A well-designed capsule polishing machine is a vital component of an integrated production line. The inlet of the polishing machine is compatible with any capsule filling machine, allowing for a continuous flow of filled capsules. After polishing, the capsules are directed to metal testing machines, weight testing machines, or appearance inspection systems. This integrated approach ensures that each capsule is subjected to a rigorous quality control process before it reaches the market.
The integration not only streamlines production but also minimizes downtime and reduces the risk of contamination. By ensuring that the equipment communicates effectively, manufacturers can achieve a higher production efficiency and better overall product quality. This seamless connectivity is particularly critical in large-scale pharmaceutical factories where even minor disruptions can lead to significant production losses.
Materials and GMP Compliance
One of the cornerstones of modern capsule polishing machines is the use of premium materials that ensure durability and ease of cleaning. Components that contact the product are manufactured from 316L stainless steel or other materials that meet contemporary pharmaceutical standards. The use of such materials is essential for maintaining a sterile production environment and for complying with GMP (Good Manufacturing Practice) guidelines.
GMP compliance is not just a regulatory requirement—it is a hallmark of quality assurance in the pharmaceutical industry. Capsule polishing machines are designed with features that facilitate easy cleaning and maintenance, such as removable spindle brushes and fully accessible internal components. These design choices minimize the risk of cross-contamination and ensure that the entire production process is safe, standardized, and reliable.
Maintenance and Troubleshooting
Regular maintenance of a capsule polishing machine is crucial to sustaining its performance and longevity. Routine inspections should be performed on key components such as rotating parts, electrical connections, and fasteners. For example, any loose or worn-out parts should be replaced promptly to prevent disruptions in the polishing process. Cleaning is also an integral part of the maintenance routine; components in contact with the product must be thoroughly cleaned after each production batch to avoid contamination.
Lubrication of moving parts is another important aspect of maintenance. Using manufacturer-recommended lubricants helps reduce friction and wear, ensuring that the machine operates smoothly. Moreover, regular checks of integrated systems—such as the capsule sorter and dust-suction device—can help detect early signs of malfunction. If anomalies such as unusual noise, excessive vibration, or inconsistent capsule output are observed, immediate troubleshooting is advised to identify and rectify the issue before it escalates.
In cases where troubleshooting is required, manufacturers often recommend starting with the simplest checks—ensuring that all connections are secure, verifying the alignment of mechanical components, and confirming that the machine settings are appropriate for the current production batch. Maintaining detailed records of routine maintenance and repairs can also help predict future issues and facilitate proactive interventions.
Innovative Solutions: Grand’s Upright Polisher
While traditional capsule polishing machines like the DGLFP-150A have set industry standards, innovation continues to drive improvements in production technology. One notable example is Grand’s upright capsule polisher. This innovative model introduces a vertical design that saves floor space and simplifies integration with existing production lines. The Grand upright polisher also features enhanced polishing mechanisms that provide more uniform surface treatment and faster processing times.
Grand’s innovation is not only in its compact design but also in its user-friendly operation and ease of maintenance. With quick disassembly features and simplified cleaning procedures, the Grand upright polisher offers a significant upgrade in both operational efficiency and product quality. Manufacturers looking to upgrade their production lines will find that this advanced model provides a compelling combination of innovation, reliability, and cost-effectiveness.
Conclusion
In summary, a high-quality capsule polishing machine is a cornerstone of modern pharmaceutical manufacturing. By incorporating advanced features such as triple functionality (polishing, lifting, and sorting), using premium 316L materials, and ensuring strict GMP compliance, these machines deliver superior capsule quality and operational efficiency. Integration with capsule filling machines and metal testing machines further enhances the production process, ensuring that each capsule undergoes rigorous quality control.
Routine maintenance and proactive troubleshooting are essential to sustaining the performance of these machines, ensuring that they remain a reliable component of the production line. As the industry continues to evolve, innovative solutions such as Grand’s upright polisher offer exciting advancements that improve efficiency, reduce downtime, and deliver outstanding product quality.
For more insights on capsule polishing innovations and technical standards, please refer to reputable sources like the Machine Journal. These references, along with manufacturer manuals and industry guidelines, provide a comprehensive understanding of the technology that drives modern capsule processing.
