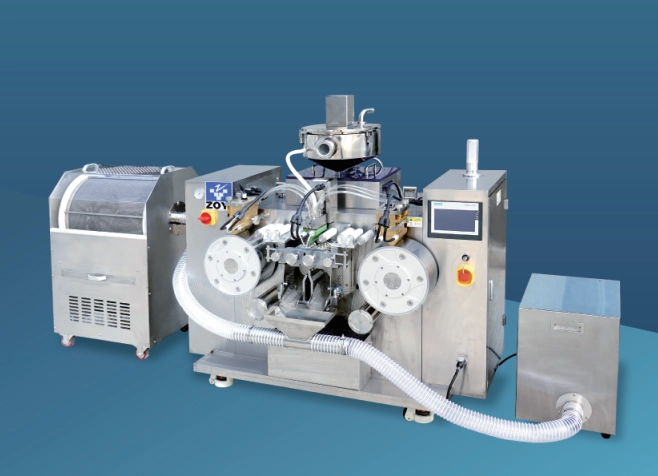

Soft Gel Capsule Making Machine RJWJ-115/200C/300C
Soft Gelatin Capsules Machine
The machine boasts a strong production capacity, capable of producing up to 370 million granules per year. The medicine injection system utilizes an advanced linear driving mechanism, ensuring a charging and filling precision of less than 2%. Additionally, it features an advanced water-cooling system that prevents pollution typically associated with air cooling.
Features
Precision Medicine Injection: The medicine injection system utilizes an advanced linear driving system, ensuring a charging and filling precision of less than 2%. The machine also features an advanced water cooling system, which prevents air pollution.
High Capsule Package Rate: Achieves a capsule packaging rate of up to 98%. The lubrication of the gelatin sheet uses minimal oil supply technology, reducing oil consumption. If lubricated with vegetable oil, the capsules produced are free from the need for washing.
FDA-Approved Conveyor Belt: The capsule conveyor belt is made from food-grade materials authorized by the FDA, ensuring it is non-toxic, non-adhesive, and easy to clean.
Durable Mold Design: The mold is crafted from high-quality aviation alloy using precision numerical control processes, ensuring long service life. Advanced manufacturing and assembly techniques contribute to the machine's stability, high efficiency, and consistent pill quality.
Automated Operations: The machine features an automatic system for supplying capsules and materials, reducing labor intensity and improving the working environment to meet GMP standards.
Why Choose Grand？
Consistent Gelatin Thickness: The liquid level in the gelatin box is automatically maintained, with a centigrade meter displaying the gelatin's thickness for easy and accurate adjustments.
Safe Materials: All parts in contact with liquid medicine and gelatin are made from materials that are non-toxic, harmless to the human body, and free from contaminants that could mix with the medicine.
Operator Safety: The machine is designed with the operator's safety in mind, ensuring safe and efficient production.
Specifications
| Model | RJWJ-115 | RJWJ-120 | RJWJ-200 |
| Rotary Speed: | 0-5rpm | 0-6rpm | 0-5rpm |
| Single pillar Volume: | 0.75-1ml | 0.75-1ml | 0.75-2ml |
| Content Uniformity: | ±1.5% | ±1.5% | ±2% |
| Power: | 6.5KW | 7.5KW | 7.5KW |
| Pilarquantity: | 8 | 8 | 12 |
| Size: | 1600×1000×1650mm | 1600×1000×1650mm | 2100×1100×1800mm |
| Weight: | 1160Kg | 1200Kg | 1840Kg |
Machine Details
Soft capsule molding mold

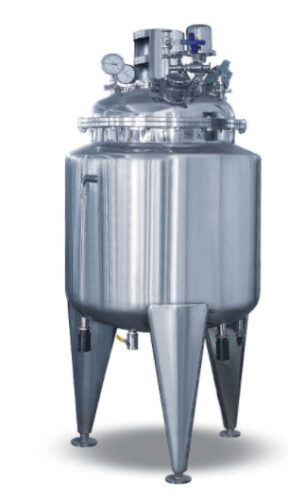

Transfer container：Gelatin Melt Tank
pcl control panel
Gear
Highly customizable
GRAND soft capsule manufacturing unit can customize molds for you according to the various shapes you provide, and is equipped with complete front-end and back-end connections to meet the market demand for high efficiency and high quality.
