Aluminum foil Metal detector LB3020

The Aluminum Foil Gold Inspection Machine(Aluminum foil Metal detector) is a specialized conveyor metal detector for applications involving foil-stamped packaging or high-conductivity materials.

It is ideal for catching metal contaminants in products or packaging that include aluminum foil or gold foil accents.

Aluminum Blister Packaging Sample-High Precision

Get a quote now

Develop Your Business with Grand

Features

Using the same advanced technology as our standard models, this machine features automatic product learning and digital phase control to reliably detect tiny foil fragments and gilded particles.
Typical sensitivity is Fe ≥1.5 mm (in empty tunnel) with belt speeds up to 30 m/min. Like all GRAND machines, it meets food-safety standards: 304 SS frame, FDA PU belt, and IP65 washdown rating.
The system supports conveyor height/aperture customization and optional rejectors (e.g. air blast or flap). Common uses include inspecting packaged foods, pharmaceuticals, cosmetics, and textiles where metallic foil is present.

Specifications

Parameter	Specification
Product Name	Aluminum Foil Metal Detector
Model	LB3020
Aperture Width	300mm
Aperture Height	200mm
Throughput	10kg / pass
Sensitivity (No-load)	Fe ≥ 1.5mm
Max Conveyor Speed	30m/min
Conveying Direction	Left to Right (Facing screen)
Conveyor Height	750 ± 50mm (Customizable)
Rejection System	Alarm Stop (Default); Auto-reject (Optional)
Belt Material	Food-grade PU Belt
IP Rating	IP65
Display & Operation	LED LCD / Keypad Input
Power Supply	AC220V 50-60Hz
Main Material	Stainless Steel (SUS304)
Note	Actual detection sensitivity depends on product characteristics (size, shape, conductivity), metal type, and installation environment. Subject to actual testing.

Why Choose Grand Machinery?

For every piece of equipment manufactured by our company, we establish a detailed user file, including detailed equipment information, user opinions and suggestions, and suggestions from after-sales service personnel, and manage it using a computer.

We conduct regular follow-up visits and feedback. We are committed to addressing users' urgent needs and thinking from their perspective, and we promise to resolve any opinions and suggestions raised by users in the shortest possible time.

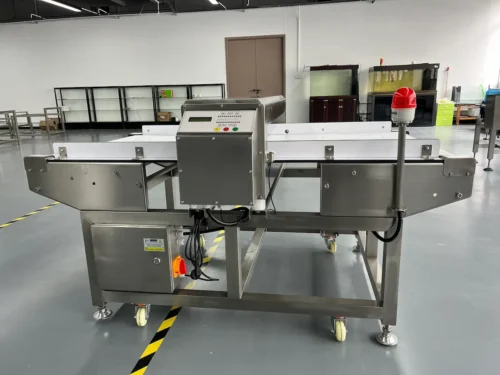

Real shot of aluminum foil metal inspection machine

Factory direct shot of aluminum foil metal inspection machine

Notes:

1. The above parameters are for our standard machine. Specific product details will be discussed separately.

2. Warranty: 1-year warranty, lifetime maintenance.

3. Machine Packaging: Film + Wooden Crate.

The above specifications and images are for reference only. We will do our best to address any other technical requirements. "Always providing the most suitable products and the highest quality service to our customers," we sincerely look forward to a pleasant cooperation with your company! Welcome to visit our company for further discussion!

FAQS

1Why is a dedicated aluminum foil metal detector required for foil packaging?

Aluminum foil is inherently metallic and highly conductive. Standard metal detectors will interpret foil packaging as metal contamination, resulting in constant false alarms. An aluminum foil metal detection machine is specially designed to compensate for the conductive signal generated by foil or metallized film.

2What types of metal contaminants can an aluminum foil metal detector detect?

An aluminum foil metal detector is primarily optimized to detect ferrous metal (iron) contaminants. Non-ferrous metals and stainless steel are considered part of the “accepted background signal” due to the presence of aluminum foil packaging.

3In which industries are aluminum foil metal detectors commonly used?

Aluminum foil metal detectors are widely used in food, pharmaceutical, nutraceutical, cosmetics, and chemical industries. Typical applications include sachets, pillow bags, pouches, blister-related secondary packaging, and metallized film wrapping. They are especially critical in pharmaceutical and health supplement production, where foil packaging is standard and regulatory compliance requires reliable foreign-body inspection without false rejection.

4Can aluminum foil metal detectors be customized for different production lines?

Yes. Aluminum foil metal detection machines can be fully customized to match specific production requirements. Customization options include tunnel size, conveyor height, belt width, detection sensitivity, reject method (alarm stop, air blast, pusher), and control interface.
