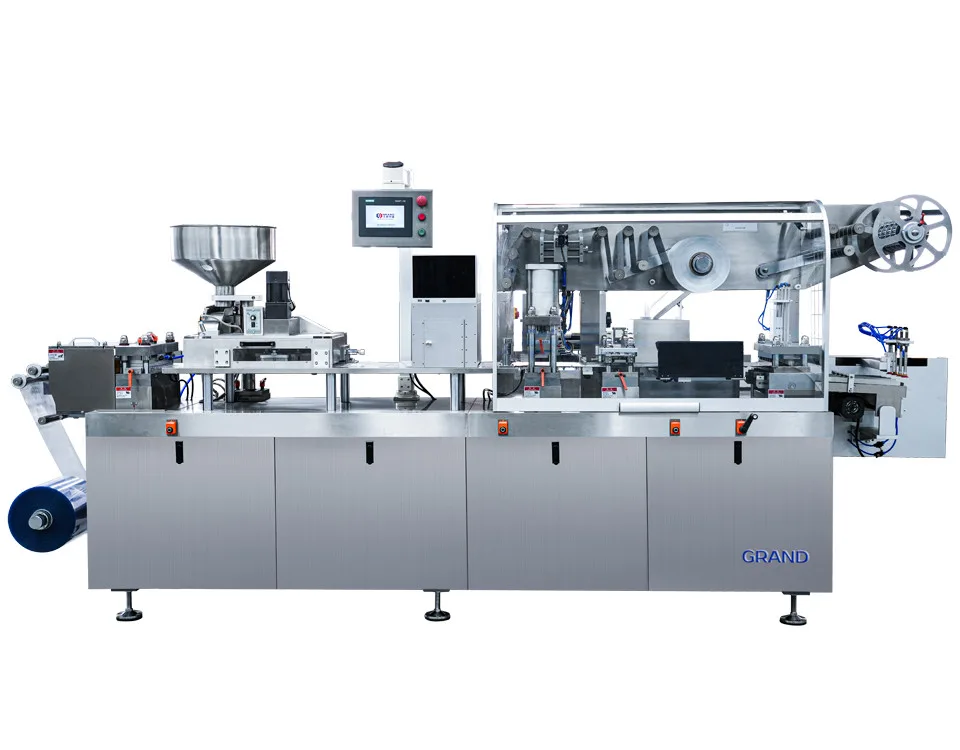

Automatic Blister Alu PVC Packing Machine DPP-270
In strict compliance with the “GMP” requirements, the Automatic Blister Packing Machine is suitable for packaging capsules in the pharmaceutical, health care, food, cosmetics and other industries.
Features
Advanced Automation: The fully automatic blister packaging machine is equipped with an Omron PLC controller, color touch screen, and a variable frequency driver. The servo system with reducer traction allows for adjustable traction length within the parameter range, minimizing manual errors and enhancing operational efficiency.
Enhanced Safety: Includes an overload protection system, automatic position detection with alarm shutdown, and automatic fault diagnosis, significantly improving safety during operation.
Material Integrity: Utilizes vibration feeding and precise quantitative control to minimize stirring and friction, ensuring the material's integrity is maintained throughout the packaging process.
Modular Design: All machine components are customizable modules, making it versatile for producing various blister package types.
Precision Packaging: Incorporates Grand's R&D technology to ensure the aluminum foil is balanced, resulting in more accurate and stable packaging.
Convenient Assembly: The machine's assembly design allows for easy movement into workshops and laboratories, simplifying installation and relocation.
Specifications
| condition | new |
|---|---|
| Warranty: | 3 year |
| After-sales service: | whole life after-sale service |
| Punch frequency: | 25-60 times/min |
| Travel range: | 40-120mm (optional) |
| Air pressure: | 0.4-0.6 mpa |
| Main motor power: | 0.8kw |
| Total power: | 380v 50hz 5.7kw (customized available) |
| PVC material: | 0.15-0.50*250mm |
| PTP alu foil: | 0.02-0.035*250mm |
| Dialysis paper: | 50-100g*250mm |
| Mold cooling: | running water or recycle water |
| Noise index: | less than 75dba |
| Machine weight: | 1700kg |
| Transport package: | wooden case |
| Specification: | 4600*650*1700 mm |
| Origin: | china |
| HS code: | 8422303090 |
| Production capacity: | 25 sets per month |
Machine Details
Forming Machine
Heat Sealing
Feeder
Punching mechanism
FAQS
Here are some FAQs
Consequently, it handles various types of capsule packaging with precision.
Therefore, these components minimize manual errors and optimize operational efficiency.
As a result, these features significantly improve operational safety.
Consequently, this approach reduces stirring and friction, preserving material integrity throughout packaging.
Thus, it is versatile and can be adapted for various blister packaging needs.
This flexibility supports different production speeds and requirements.
