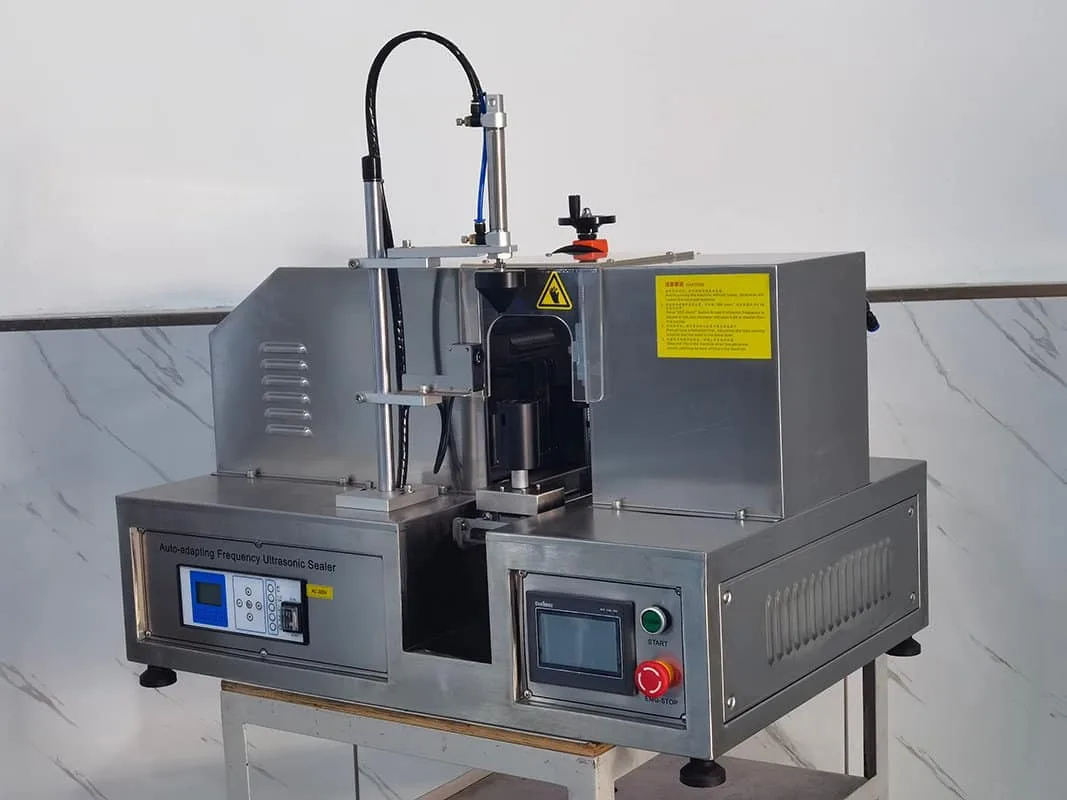

Tube Sealing Machine
Applicable to: food, medicine, cosmetics, chemical and other skincare industries.
Video
Features
Ultrasonic Tube Sealing: Combines filling and sealing functions in one operation, ensuring efficiency and precision.
Manual Tube Loading: Includes color mark orientation for accurate tube alignment during filling and sealing.
Advanced Control System: Utilizes PLC control with a touch-type human-machine interface for intuitive operation.
Technical Advantages: Compact structure, easy operation, and precise filling ensure reliable performance.
Specifications
| Model: | DG-007 |
| Productivity: | 20-35 tubes/min |
| Radius of Sealing: | 10-50mm |
| Height of Sealing: | 50~210mm |
| Frequency: | 20KHz |
| Air Pressure: | 0.6Mpa ≥0.3m³/min |
| Power Supply: | 1.8KW 220/110V 1PH 50/60Hz , |
| Dimension: | L860*W600*H800 (mm) |
| Weight: | 85kg |
Machine Details

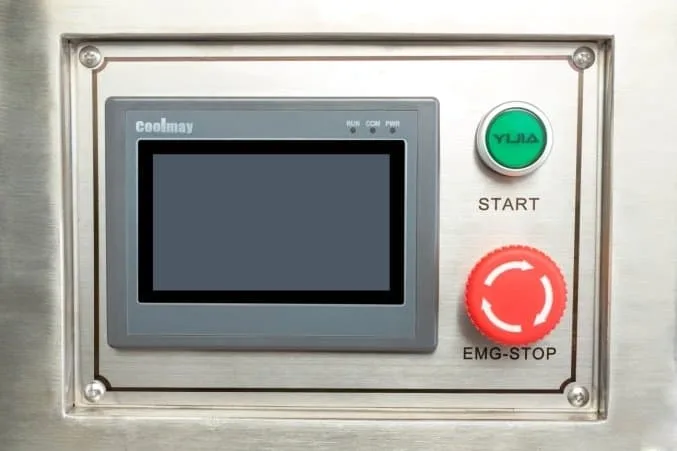

Electronic Control System

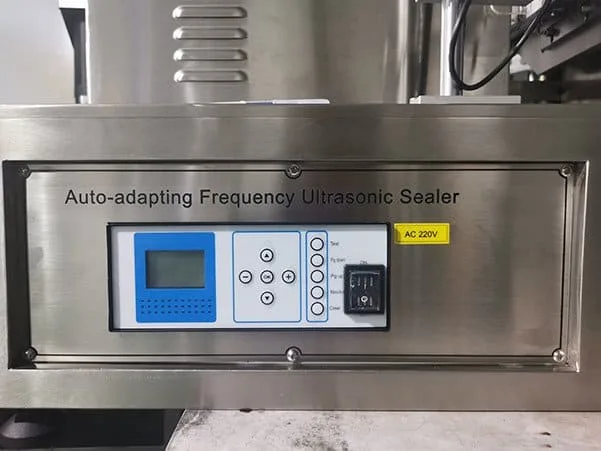

Ultrasonic Eletronic Box

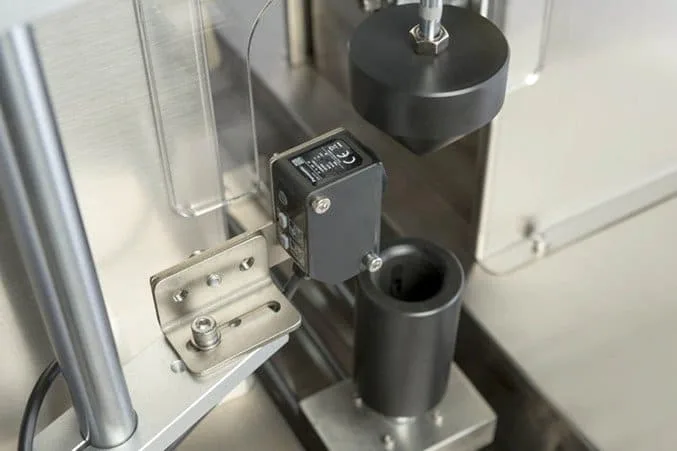

Tube Base
Ultrasonic Sealing
FAQS
Here are some FAQs
1What industries is this machine suitable for?
The Tube Sealing Machine is ideal for food, medicine, cosmetics, and chemical industries.
It is specifically designed to meet the needs of these sectors with high efficiency.
It is specifically designed to meet the needs of these sectors with high efficiency.
2How does the machine ensure accurate tube alignment?
The machine uses a color mark orientation system for precise tube alignment.
This system minimizes errors, ensuring consistent and accurate sealing.
This system minimizes errors, ensuring consistent and accurate sealing.
3What is the production capacity of the machine?
The Tube Sealing Machine can process 10-15 tubes per minute.
This makes it suitable for small to medium-scale production lines.
This makes it suitable for small to medium-scale production lines.
4Is the machine easy to operate?
Yes, the machine features a PLC control system with a touch-sensitive interface.
This design ensures that it is user-friendly and easy to operate.
This design ensures that it is user-friendly and easy to operate.
5What is the maximum sealing height?
The machine can handle tubes with a sealing height of up to 210mm.
This allows for versatility in packaging different tube sizes.
This allows for versatility in packaging different tube sizes.
6What power supply does the machine require?
The machine operates on a power supply of 1.8KW, 220/110V, 1PH, 50/60Hz.
This power configuration is suitable for standard industrial settings.
This power configuration is suitable for standard industrial settings.
