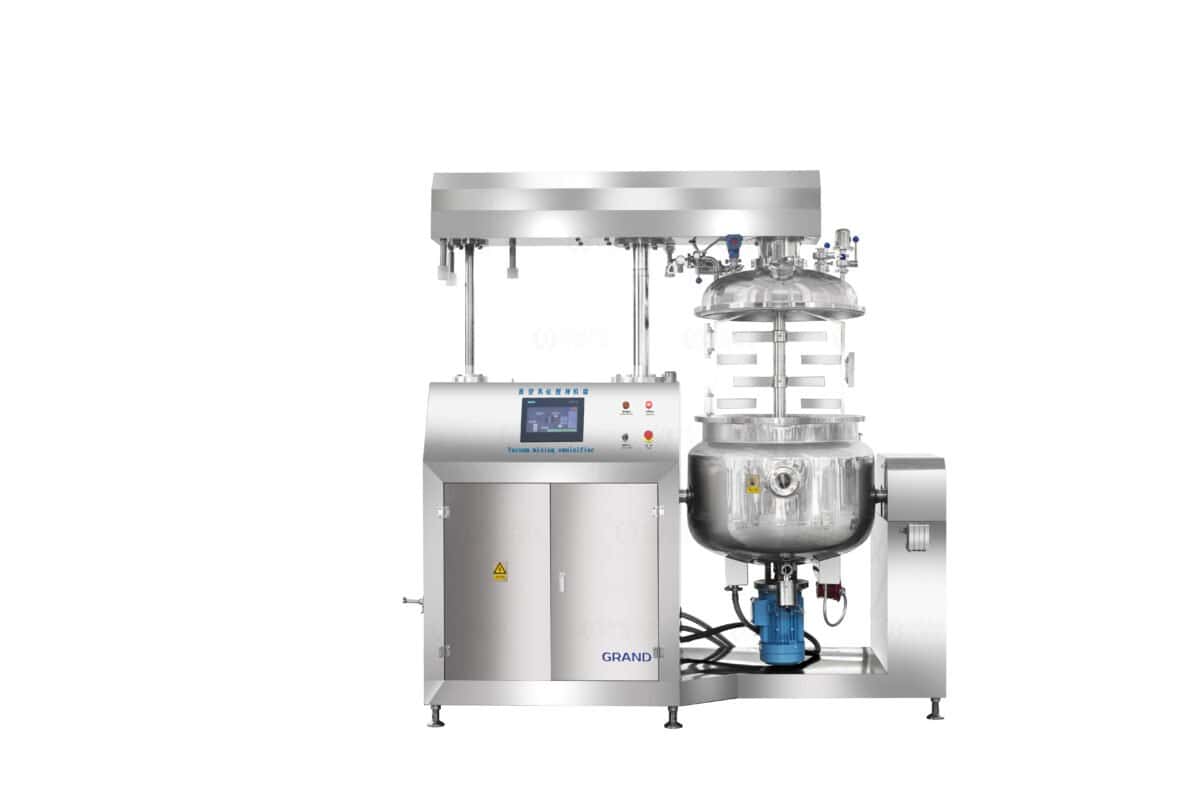

Vacuum Emulsifier MixerDG-200L
Th DG-200L efficiently combines mixing and heating for diverse industrial applications.
Features
Multifunctional Integration: The Vacuum Mixer Homogenizer effectively integrates homogenization, emulsification, mixing, and cooling into one machine, being suitable for cosmetics, food, chemicals, and pharmaceuticals.
High-Quality Raw Materials: Crafted from top-grade stainless steel and non-toxic substances, ensuring hygiene and compliance with safety standards.
Advanced Components: The key components encompass the emulsifying pot, vacuum system, heating and cooling systems, and automated controls for efficient operation.
Safe Operation: It features high-speed and slow-speed mixing for precise control, along with safety measures such as automated valves and hydraulic systems.
Specifications
| Component | Specifications |
|---|---|
| Main Pot Volume | 250L (Working: 200L) |
| Pressure | Inside: -0.1 MPa, Jacket: 0.1 MPa |
| Pre-treatment Pots | Oil Pot: 100L, Water Pot: 120L |
| Pressure (Jacket) | 0.1 MPa |
| Temperature | ≤130℃ |
| Turbine Type Agitator | Power: 1.1KW, Speed: 1400 R/min |
| Slow Frame Agitator | Power: 1.5KW, Speed: 0-60 R/min (VFD) |
| High-speed Homogenizer | Power: 4KW, Speed: 0-3500 R/min (VFD) |
| Vacuum Degree | -0.09 MPa |
| Vacuum Pump Model | 2BV2070, Power: 2.35KW |
| Vacuum Pump Type | Water Ring |
Machine Details
Screen
Electrical control system

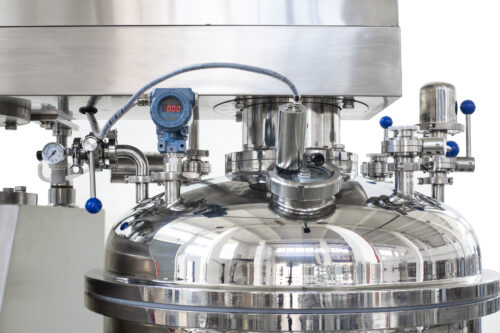

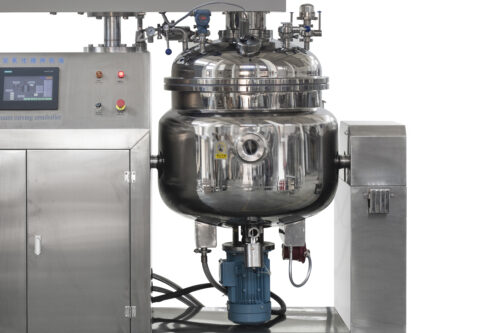

Stirring the Pot
