Introduction
In industries where precision is not just a goal but a necessity – from life-saving pharmaceuticals to gourmet food products – the handling and packaging of powders present a unique set of challenges. Dust control, accurate dosing, and maintaining product integrity are just a few of the hurdles manufacturers face daily. The solution? A state-of-the-art powder filling machine at the heart of a seamlessly integrated powder filling production line. This is where engineering excellence meets manufacturing needs, and today, we're taking a deep dive into what constitutes the ultimate powder filling equipment, with a special look at the innovative solutions offered by Grand.
The Anatomy of a Modern Powder Filling Line
A modern powder filling production line is more than just a single machine; it's a meticulously orchestrated system where each component works in harmony to deliver a perfect final product. Let's walk through the typical process flow of such a line, as exemplified by Grand's advanced system.

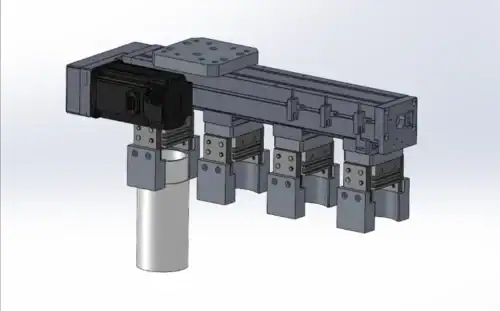

- Bottle Preparation: The journey begins with preparing the containers. This often involves a bottling line that starts with a bottle-feeding turntable to introduce empty bottles into the system. To ensure a pristine environment for the powder, a robotic air rinsing machine with an auto-adjusting gripper cleans the bottles internally using an ionized air blast to remove any dust or contaminants.

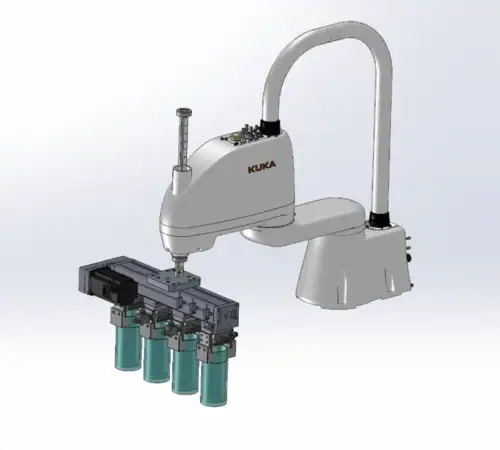

- Intelligent Loading: Once cleaned, the bottles are precisely placed onto the conveying system. This critical step is handled by a SCARA loading robot, which also features an auto-adjusting gripper for different bottle sizes, ensuring a gentle and accurate transfer to the next stage.
- The Heart of the Line: Filling and Dosing: The bottles are filled with the precise amount of powder using a high-tech powder filling machine. We will explore this crucial component in more detail later.
- Capping and Sealing: After filling, the bottles are securely sealed. A DELTA cap-loading robot places caps onto the bottles, which are then sorted by a vibratory bowl and tightened by a servo-controlled capping machine.
- Quality Control and Rejection: To guarantee product quality, the line incorporates a deflective product-rejecting system. Any bottles that don't meet the stringent quality standards are automatically removed from the line and collected.
- Labeling and Cartoning: The final steps involve applying labels to the bottles with a high-speed labeling machine and then packaging them into cartons using an automatic cartoning machine.
This entire process is facilitated by a sophisticated conveying system, and as we'll see, Grand takes this to the next level with its innovative maglev technology.
The Heart of the Line: The Powder Filling Machine

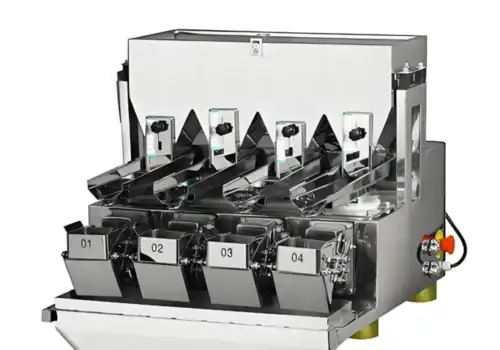

The centerpiece of any powder filling production line is, of course, the powder filling machine itself. In the world of powder fillers, accuracy is king, especially when dealing with micro-doses of expensive or potent substances. Grand's solution, the Micro-dose Powder Dosing and Weighing Machine, is a prime example of cutting-edge
dry powder filling machine technology.
Here's what makes a modern powder filling machine like Grand's so exceptional:
- Unparalleled Precision: The machine utilizes high-precision digital sensors from leading brands like HBM or Toledo, ensuring incredibly accurate weighing with an average tolerance of just ±0.1g (subject to material characteristics). This level of precision is crucial for product efficacy, safety, and cost control.
- High-Speed Performance: The APW-1B4(03) Modular 4-Head Linear Weigher can achieve a weighing speed of 10-40 bags/min, allowing for high-speed production without compromising accuracy. The weighing hopper's opening and closing are controlled by a servo motor, contributing to its speed and precision.
- Flexibility and Versatility: The modular design of the weigher, with interchangeable aluminum cartridges, allows for easy adaptation to different products and production needs. It's even capable of simultaneous weighing of different materials for mixed packaging.
- User-Friendly Operation: A 15.6-inch touch screen interface provides intuitive control over the machine's functions. The system supports multiple languages and features tiered access control for different user permissions.
- Intelligent Features: The machine is equipped with an intelligent fault alarm system that provides clear diagnostic prompts to pinpoint issues quickly, minimizing downtime. Operators can also modify parameters in real-time during operation.
Such advanced features are what set a modern automatic powder filling machine apart from its predecessors, offering manufacturers unprecedented control and efficiency.
Beyond Filling: The Power of Automation and Robotics
To achieve true efficiency and consistency, modern powder filling production lines rely heavily on automation and robotics. Grand's system showcases this beautifully with the integration of KUKA robots at multiple stages of the process.
- Robotic Air Rinsing: A KUKA robot arm performs the air rinsing of bottles, with its sixth axis rotating 180 degrees for inverted de-dusting. This automated process ensures thorough cleaning and eliminates the risk of human error.

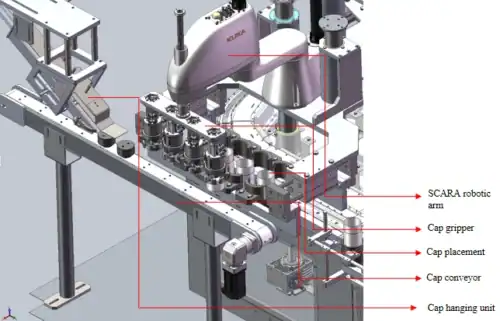

- Robotic Loading and Capping: SCARA robots are used for loading bottles onto the conveyor and for loading caps onto the bottles. These robots are fast, precise, and can operate continuously, significantly boosting production speed.
- Format Changeovers Without the Hassle: A key advantage of using robotic arms is the elimination of change parts during format changeovers. This means that switching between different bottle sizes is a quick and easy process, reducing downtime and increasing production flexibility.
The use of robotics in the bottling line not only enhances efficiency but also creates a more sterile production environment, which is particularly important in the pharmaceutical and food industries.
The Game Changer: The Maglev Conveying System
Perhaps the most groundbreaking innovation in Grand's
powder filling production line is the integration of a maglev conveying system. This technology, which uses magnetic levitation to move products along the line, offers a multitude of advantages over traditional belt or chain conveyors.
- Incredible Speed and Accuracy: The maglev system boasts a speed of up to 5 m/s with 5g acceleration and a remarkable positioning accuracy of ±50 μm. This allows for rapid and precise movement of bottles between stations, which is essential for high-speed operations.

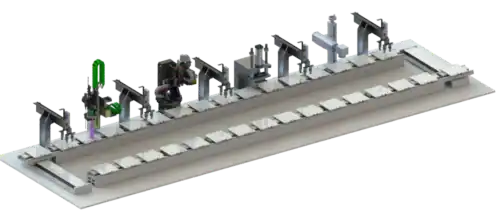

- Unmatched Flexibility: The movers on the maglev track can be controlled independently, allowing for flexible layout options, including loop, planar/vertical docking, and diverging layouts. This adaptability makes it possible to design a production line that perfectly fits the available space and production requirements.
- Low Maintenance and Cleanroom Compatibility: The frictionless nature of the maglev system means there is no wear and tear, resulting in low maintenance costs and a quieter operating environment. The absence of moving parts also makes it ideal for cleanroom applications, as it generates fewer particles.
- Seamless Integration: Grand has seamlessly integrated the maglev system into its production line, achieving dynamic synchronization between different processes like capping and vision inspection. This integration contributes to better production management and quality control.
The adoption of maglev technology is a clear indicator of Grand's commitment to innovation and providing its customers with the most advanced powder filling equipment on the market.
Ensuring Quality and Compliance from Start to Finish
In any manufacturing process, quality control is paramount. Grand's powder filling production line incorporates several features to ensure that every product leaving the line meets the highest quality standards.
- In-Process Checkweighing: An in-process checkweigher with independent weighing sensors is integrated into the maglev conveyor system, allowing for real-time weight verification of each bottle.
- Automated Rejection: As mentioned earlier, a deflective product-rejecting system automatically removes any out-of-spec products from the line. This prevents defective products from reaching the market and protects the brand's reputation.
- Vision Inspection: The integration of vision inspection systems further enhances quality control by allowing for the detection of cosmetic defects or other issues that cannot be identified by weighing alone.
These quality control measures, combined with the overall precision and reliability of the line, ensure that manufacturers can produce high-quality products consistently.
A Complete Solution for Your Powder Packaging Needs
Grand offers more than just individual machines; it provides a complete, integrated solution for powder packaging, from initial product evaluation to after-sales service and support. This includes everything from bottle design and optimization to on-site technical support and spare parts availability. By integrating the labeling machine and automatic cartoning machine into a unified modular system with the maglev conveyor, Grand helps to save space, reduce labor intensity, and streamline the entire production process.
Investing in a modern, automated powder filling machine and production line is no longer a luxury; it's a strategic necessity for any company that wants to compete in today's fast-paced market. The technology exists to overcome the challenges of powder filling, and companies like Grand are leading the way with innovative solutions that deliver precision, efficiency, and reliability in every pinch. While the initial investment in such advanced technology may seem significant, the long-term benefits in terms of increased productivity, reduced waste, and enhanced product quality make it a wise choice for any forward-thinking manufacturer.
