Blister Packaging Machine
Automatic blister packaging machine available for pharmaceutical and tablet blister pack.
We provide semi-auto to fully packing machine solutions.
Your Best Choice

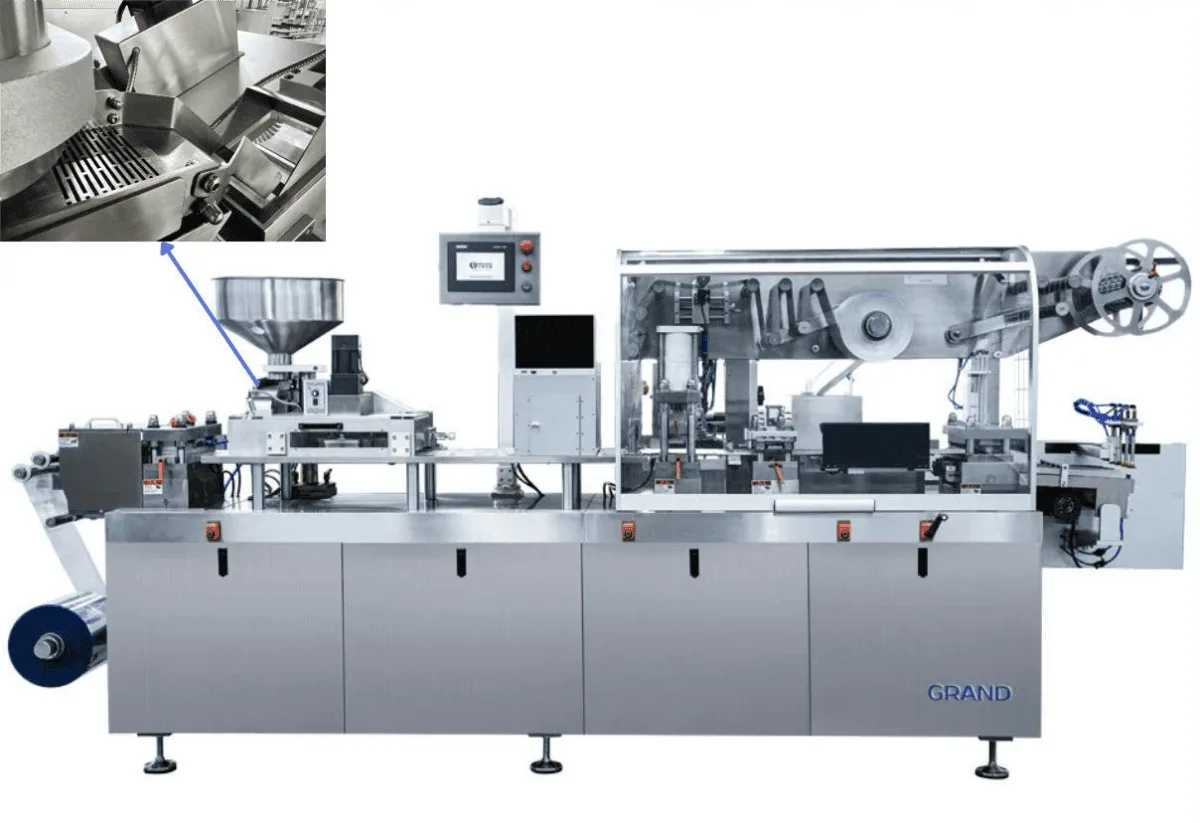

Automatic Blister Alu PVC Packaging Machine DPP-270
The DPP-270 automatic blister aluminum-plastic packaging machine is a high-end customized equipment designed for efficient and safe packaging needs. It adopts precision technology to ensure stable operation and supports rapid mold replacement, greatly improving production flexibility. The equipment is compatible with a variety of specifications and is suitable for industries such as pharmaceuticals, food and electronics to meet different packaging needs.

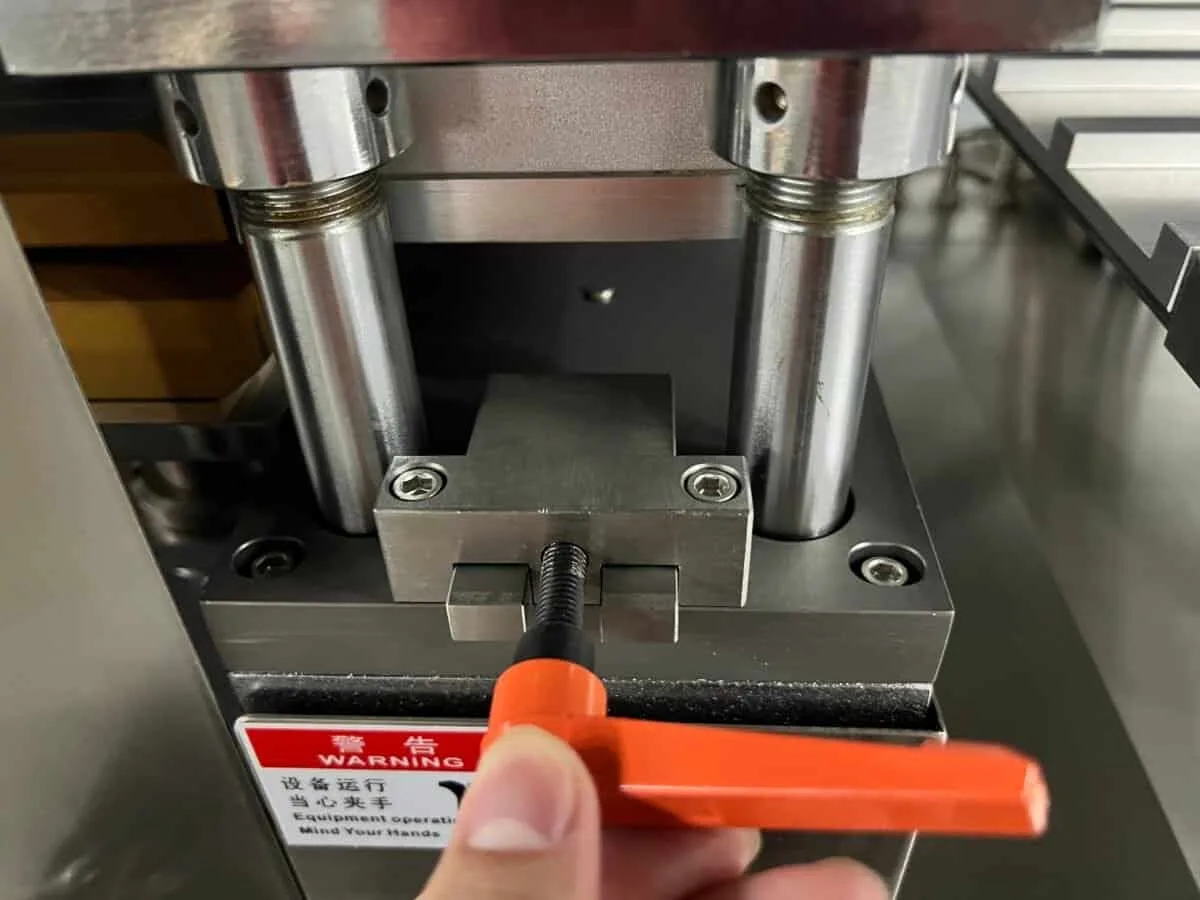

The most convenient mold change!

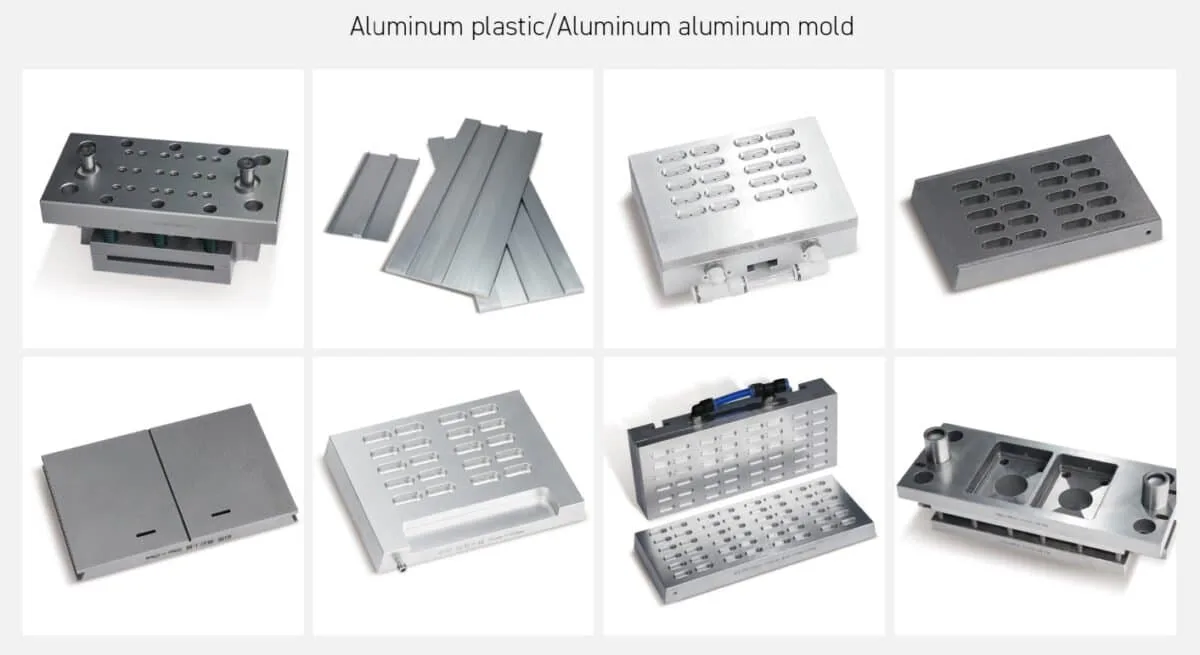

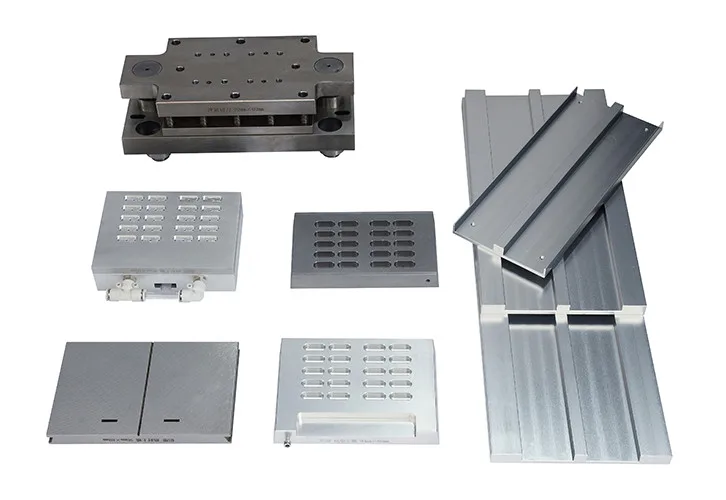

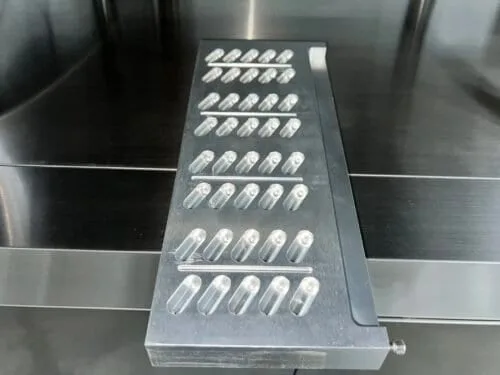

Custom aluminum plate mold：
Customize different capsules and tablets according to customer needs. Customize all-aluminum. With quick disassembly device, the mold can be replaced within 30 seconds.

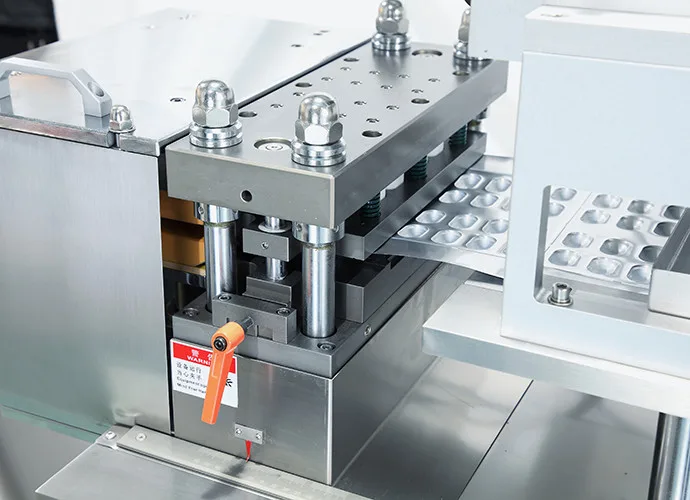

Unscrew and insert the mold

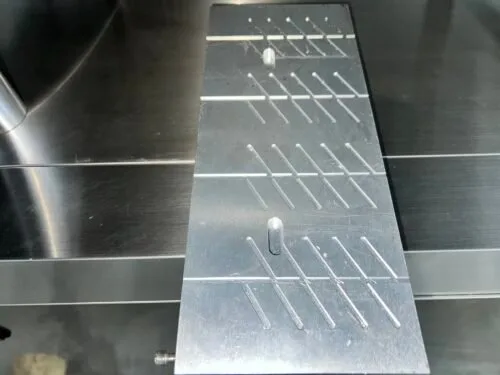

Capsule mold positioning hole：
The positioning holes on the back of the mold can easily make the mold firmly stuck on the blister machine without sliding
The most reliable gadget

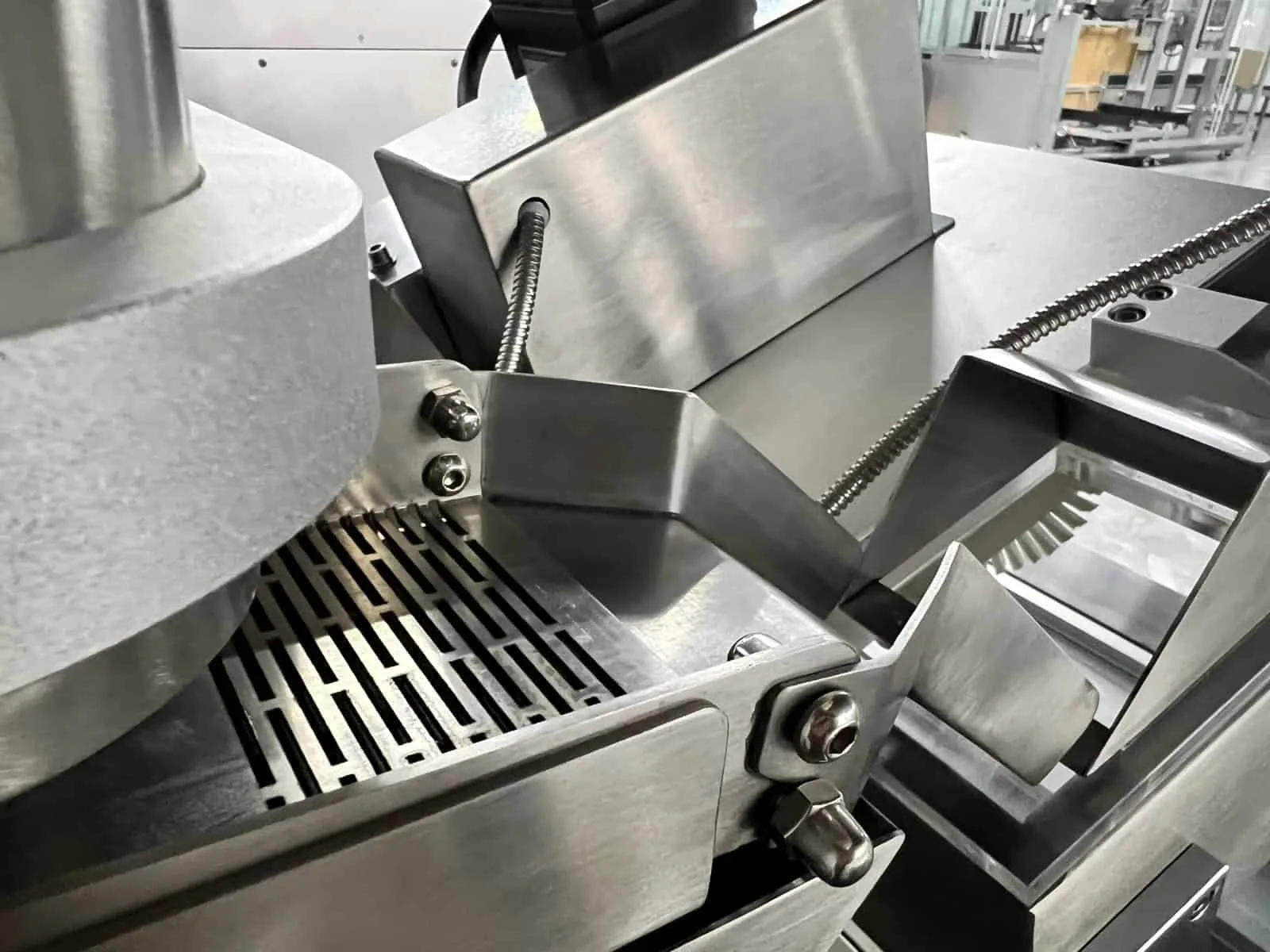

Powder screening device：
When producing uncoated tablets, excess powder can be effectively screened out.
The conveying hopper can be folded upwards, which improves flexibility and saves time and effort when installing the track.

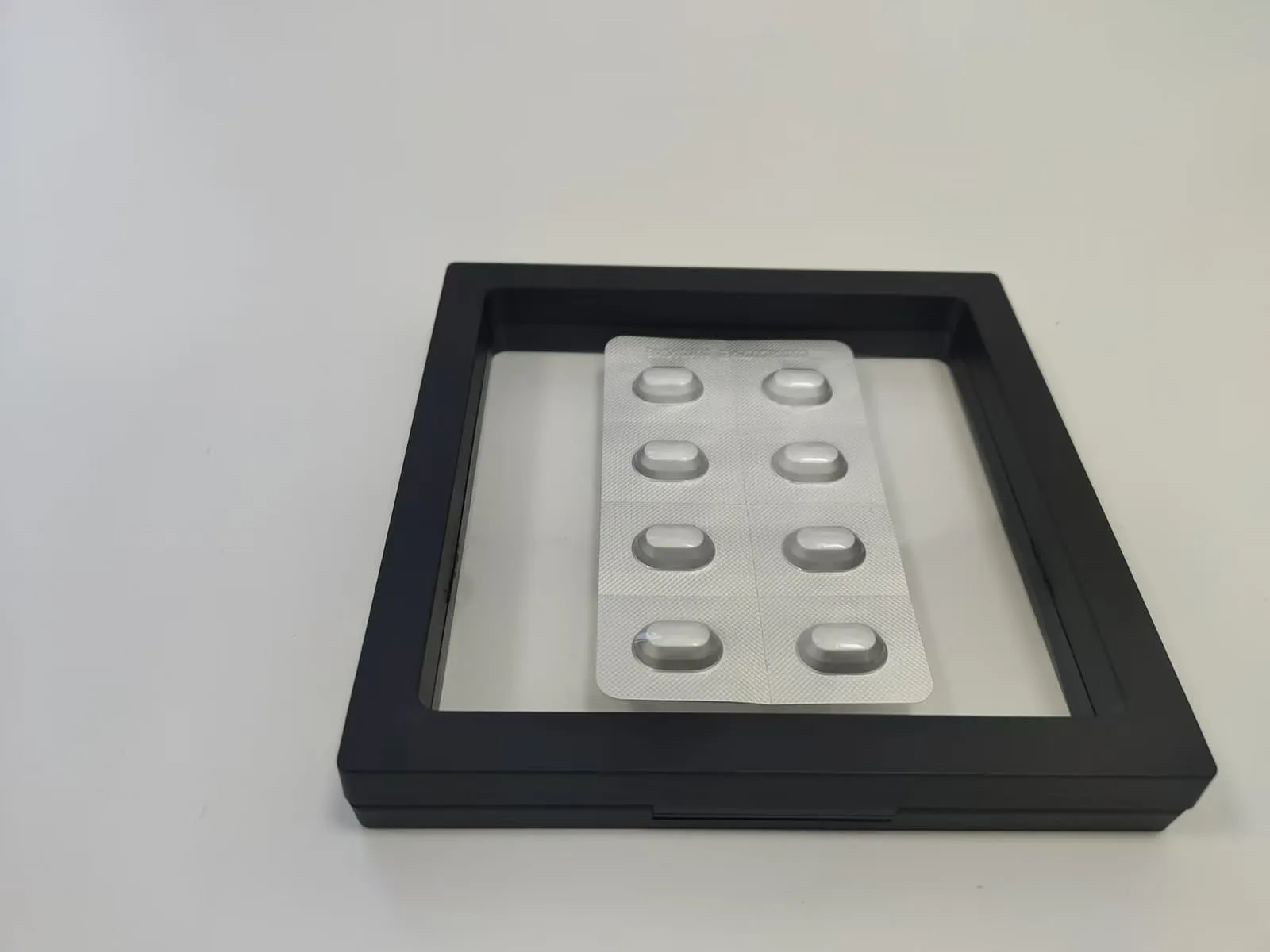

Application Blister Pack

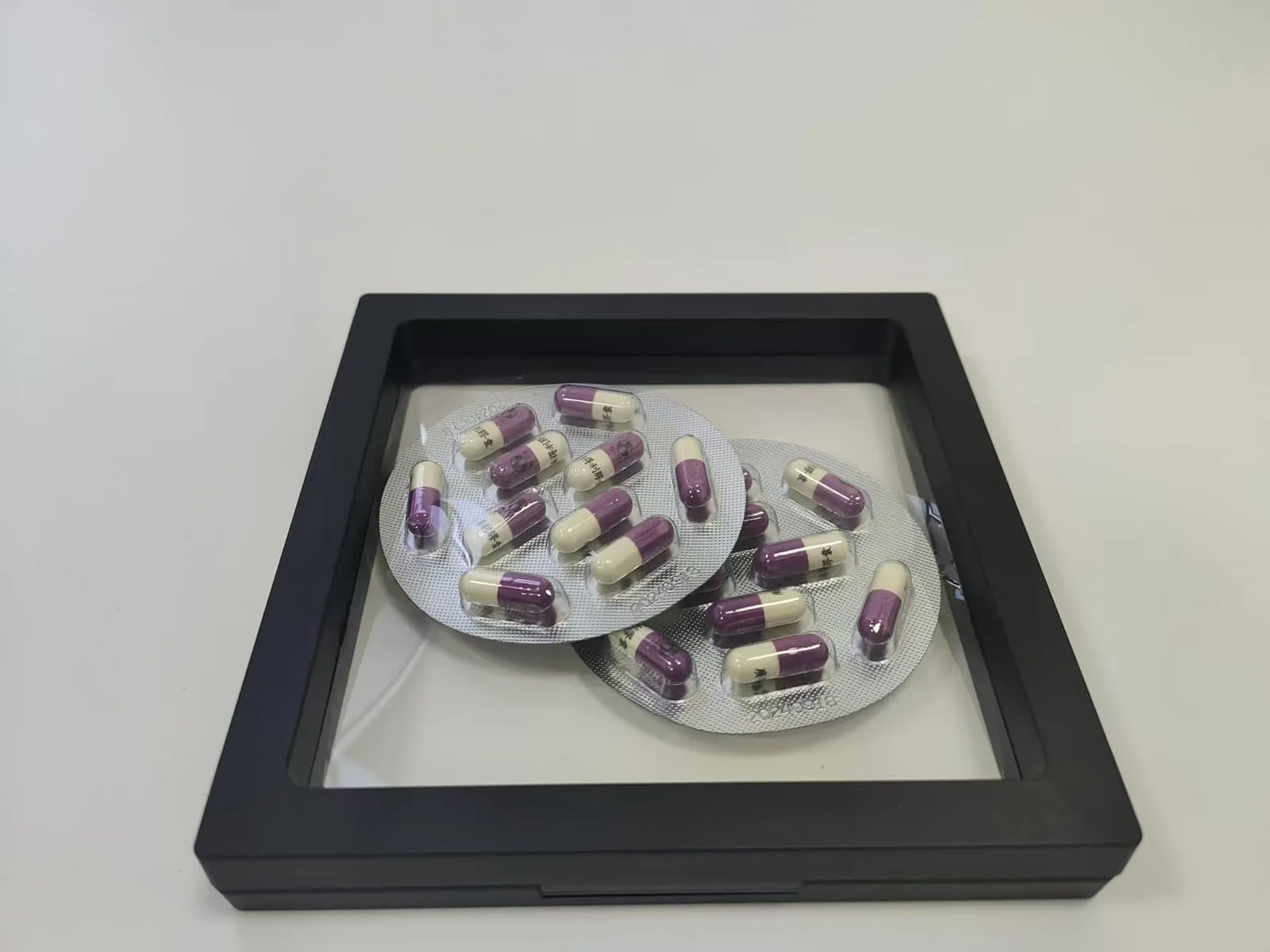

Capsule Blister Pack
Alu Alu Blister Pack

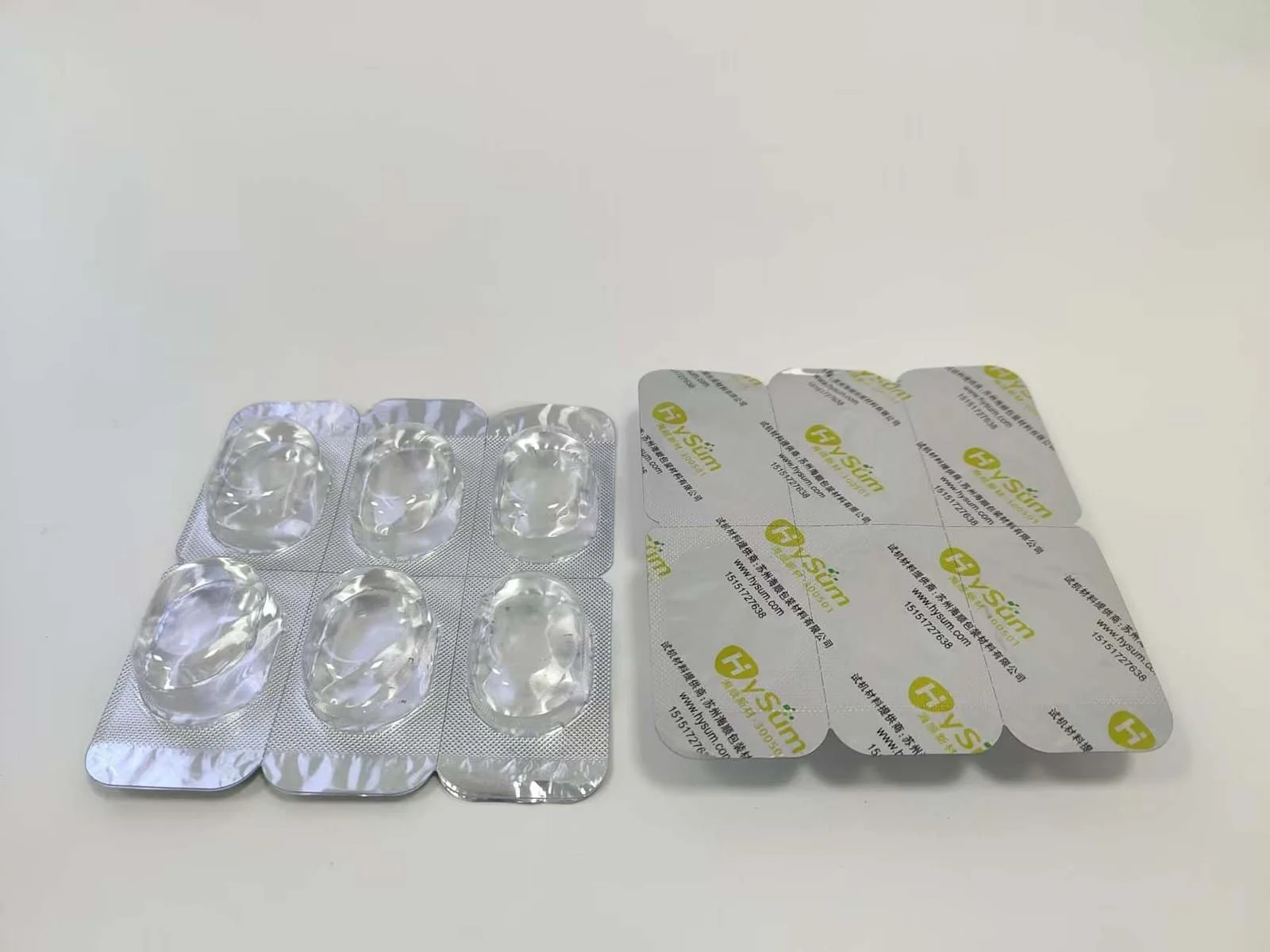

Liquid Blister Pack

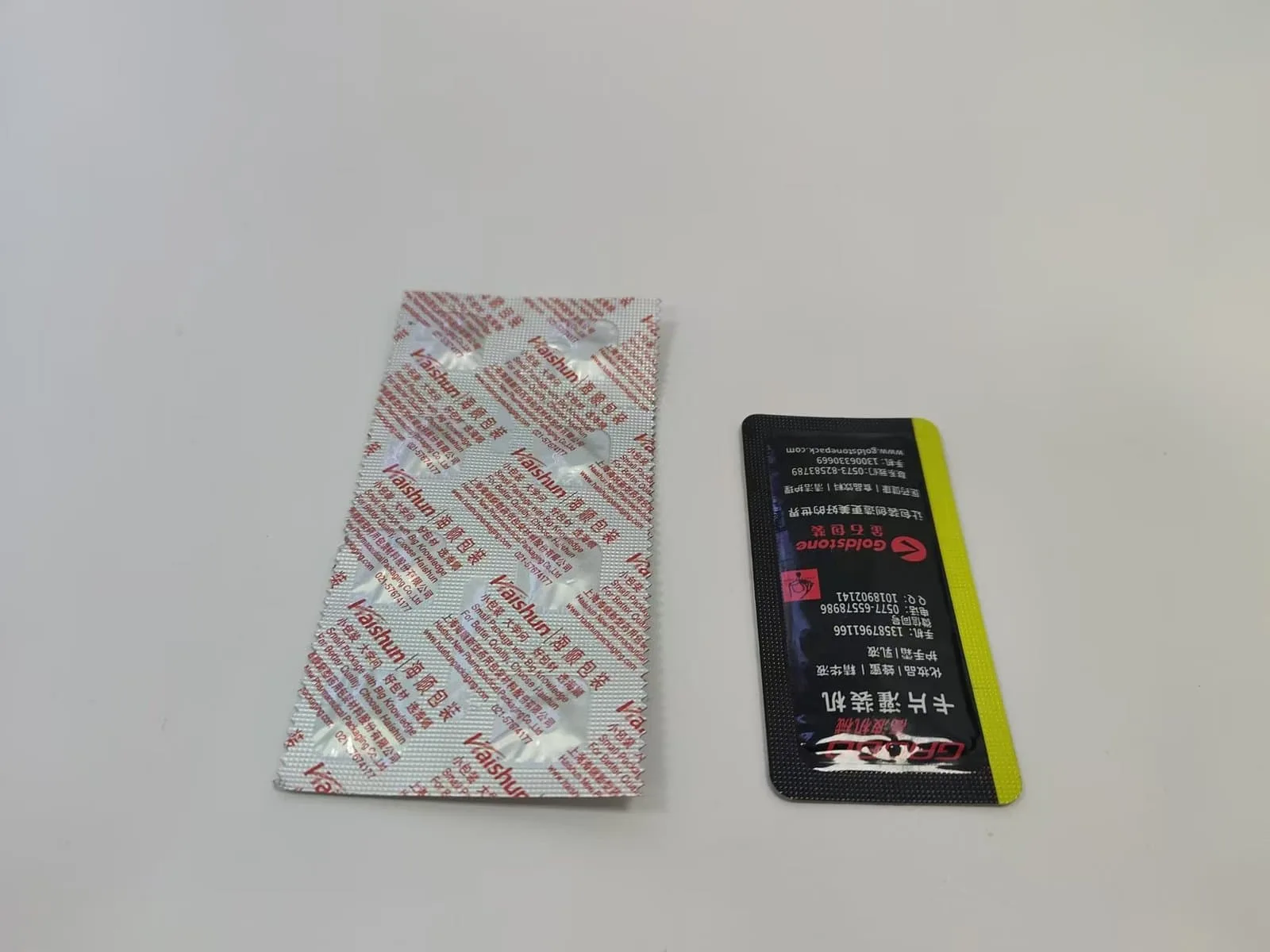

Blister Card

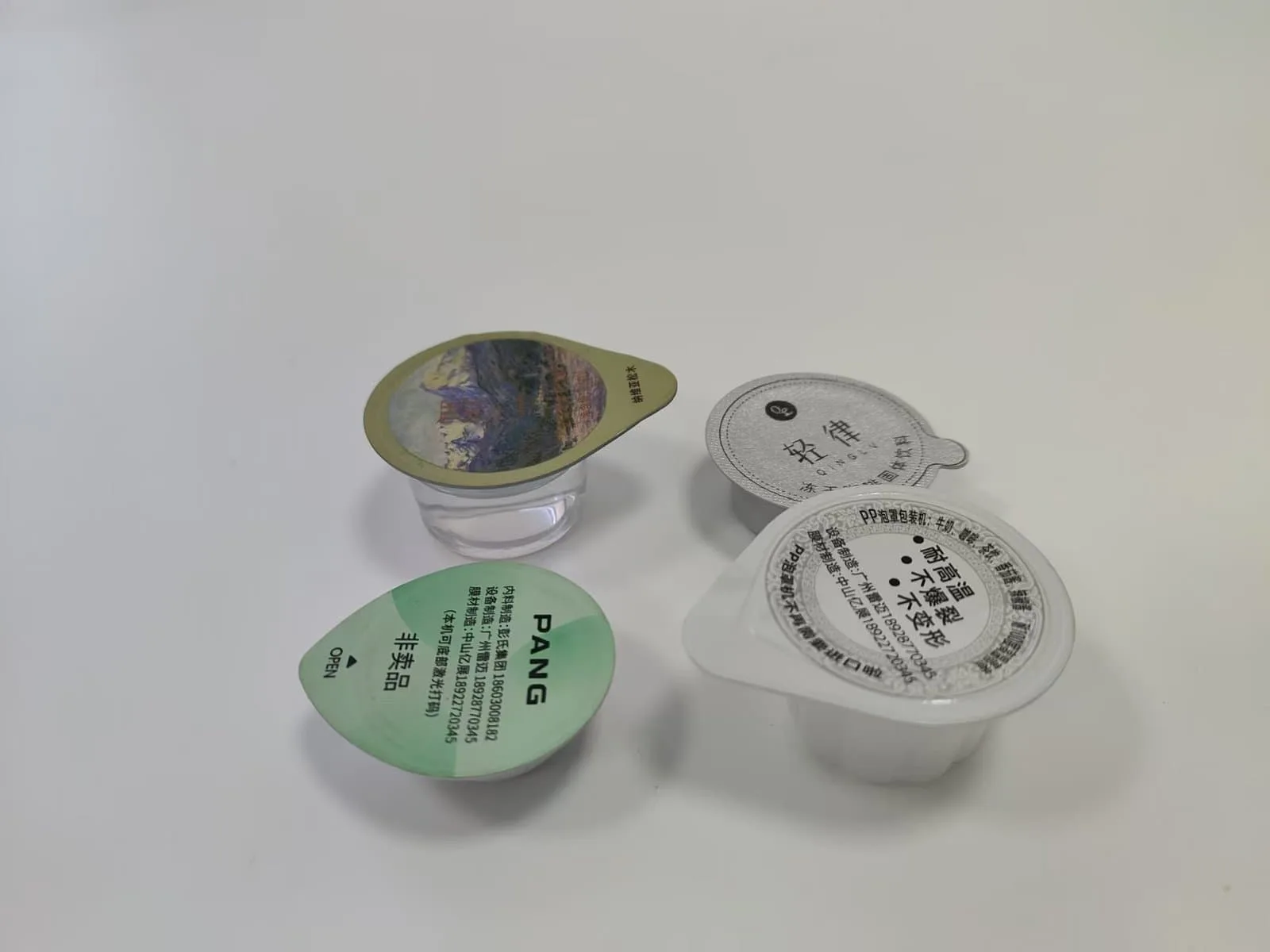

Blister Cup

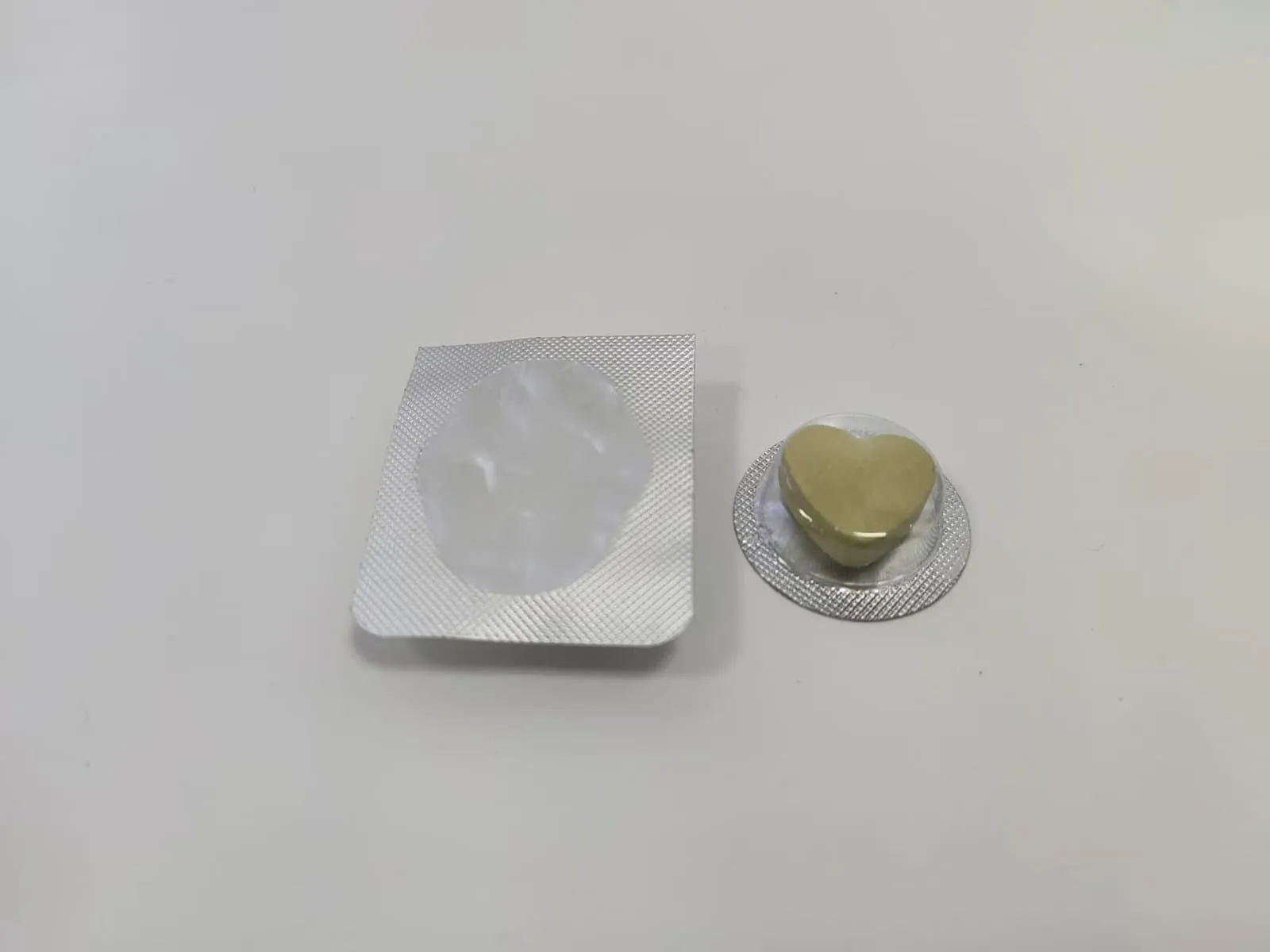

Hard Candy
High quality customization

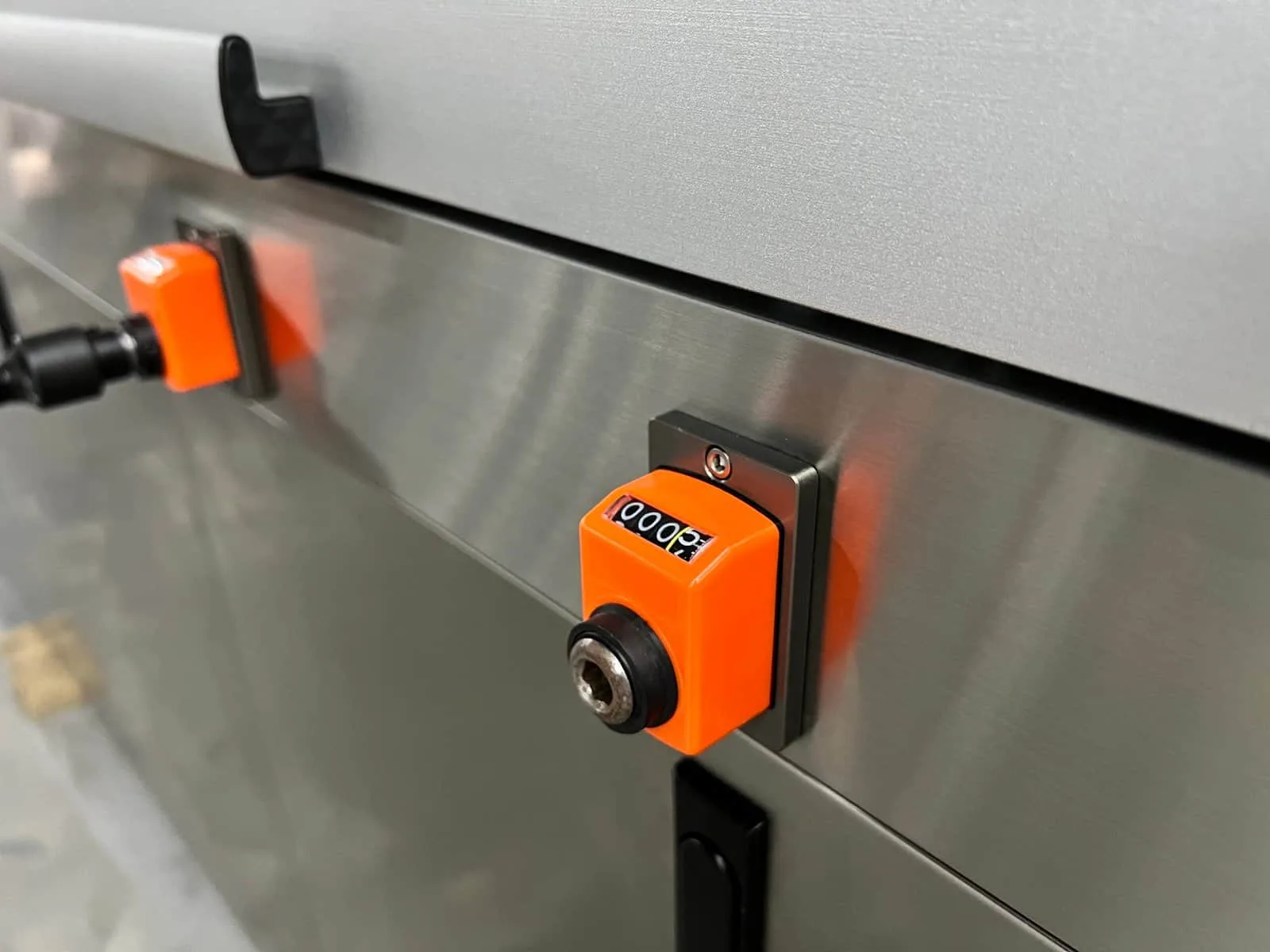

External adjustment：
External screws allow for quick and easy adjustment of the mechanism

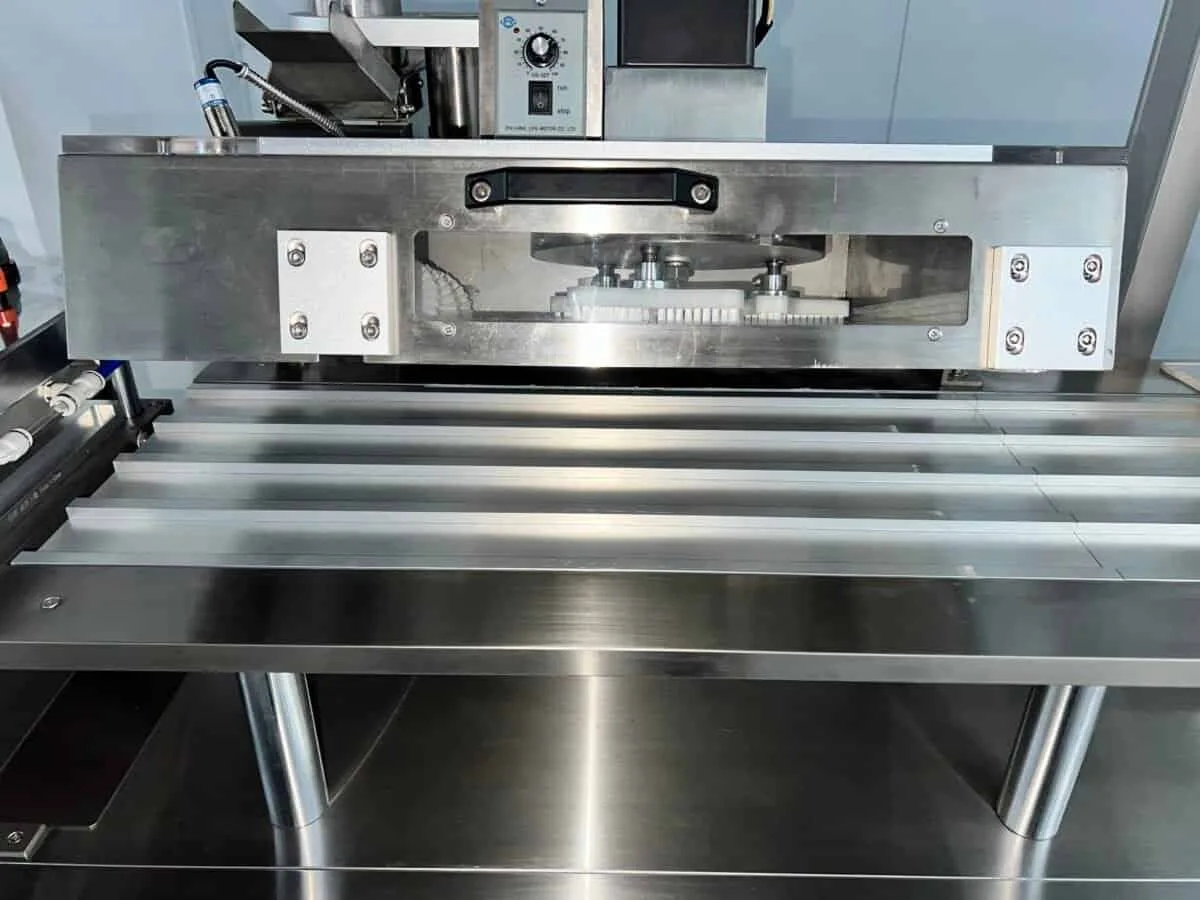

All-aluminum custom track：
The two screws at the bottom make disassembly smooth while ensuring stability
Mainstream model parameters
| Parameter/Model | Manual Blister Packaging | DPP-80 | DPP-88 | DPP-140 | DPP-250 | DPP-270 |
|---|---|---|---|---|---|---|
| Cutting Speed | Manual operation | 10-33 times/min (based on plate number) | 60 times/min | 25-60 times/min | 25-60 times/min | 20-180 plates/min (aluminum-plastic), 20-120 plates/min (aluminum-aluminum) |
| Capacity | 200-700 grains/hour | 200-700 plates/hour | 18,000-36,000 plates/hour | 2,000-5,000 plates/hour | 1.8-23.6 million grains/hour (aluminum-plastic) | 1.8-23.6 million grains/hour (aluminum-plastic) |
| Stroke Range | 35-75mm | 30-80mm (customizable) | 30-120mm | 40-120mm (optional) | 40-120mm (optional) | 40-130mm (standard), 40-160mm (custom) |
| Max. Forming Area | 110mm x 120mm | 80mm x 105mm | 260mm x 250mm | 260mm x 260mm | 250mm x 250mm | 130mm x 250mm |
| Max. Forming Depth | 14mm (aluminum-plastic forming) | 25mm | 12mm | 12mm | 12mm | 14mm (aluminum-plastic), 12mm (aluminum-aluminum) |
| Power Supply | 220V, total power 2.6kW | 220V/380V, total power 2.4kW | 220V, total power 2.6kW | 380V 50Hz 2.25kW (customized available) | 380V 50Hz 5.7kW (customized available) | 380V 50Hz 7.5kW |
| Main Motor Power | 0.75kW | 0.75kW | 0.75kW × 2 | 0.8kW | 0.8kW | 2.2kW |
| Air Pressure | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.6-0.8Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | ≥0.3m³/min |
| Noise Index | <75dBA | <75dBA | <75dBA | <75dBA | <75dBA | <75dBA |
| Machine Dimensions (L×W×H) | 635mm×575mm×710mm | 1887mm x 580mm x 1100mm | 1700mm×650mm×1450mm | 4460mm×650mm×1700mm | 4460mm×760mm×1620mm | 3600mm×720mm×1650mm |
| Machine Weight | 115kg | 425kg (net), 475kg (gross) | 450kg | 1850kg | 1700kg | 1700kg |
| Mold Cooling | Tap water or recycle water | Tap water or recycle water | Tap water or recycle water | Tap water or recycle water | Tap water or recycle water | Tap water or recycle water |
| Applicable Materials | PVC hard film, PTP aluminum foil, dialysis paper | PVC hard film, PTP aluminum foil, dialysis paper | PVC material, PTP aluminum foil, dialysis paper | PVC material, PTP aluminum foil, dialysis paper | PVC material, PTP aluminum foil, dialysis paper | PVC material, PTP aluminum foil, dialysis paper |
Blister Packaging Machine Features:
Supply semi to fully automatic blister packaging machines, Applied for Blister Card, Double Trapped Blister,Full Card Blister, Pills blister pack......
Application products: Pills Tablets, Medicine, capsules, candies .
Packaging materials: liquids, powders, granules.
Customizable: Mold size, Motor, Cylinder.
Application: Pharmaceutical Factory, Laboratory, candy factory.
Why Choose Us
R&D Strength
We invest millions of dollars every year to upgrade our blister packaging machines.
Competitive Price
We only earn limited profits and gain customer trust with quality.
Professional Design
We have a technical team to customize the design according to your blister packaging, 100% free.
Intelligent Factory Planning
If you are a pharmaceutical company, we can customize blister packaging line solutions for you.
PDF Download
Video Gallery
The high-speed blister packaging machine can punch 200 times per minute!!! Which is the fastest blister machine on the market!
The machine is designed to package a variety of materials, including: food, yogurt, cosmetics, contact lenses, medicines, sauces, and health products in blister packs.
