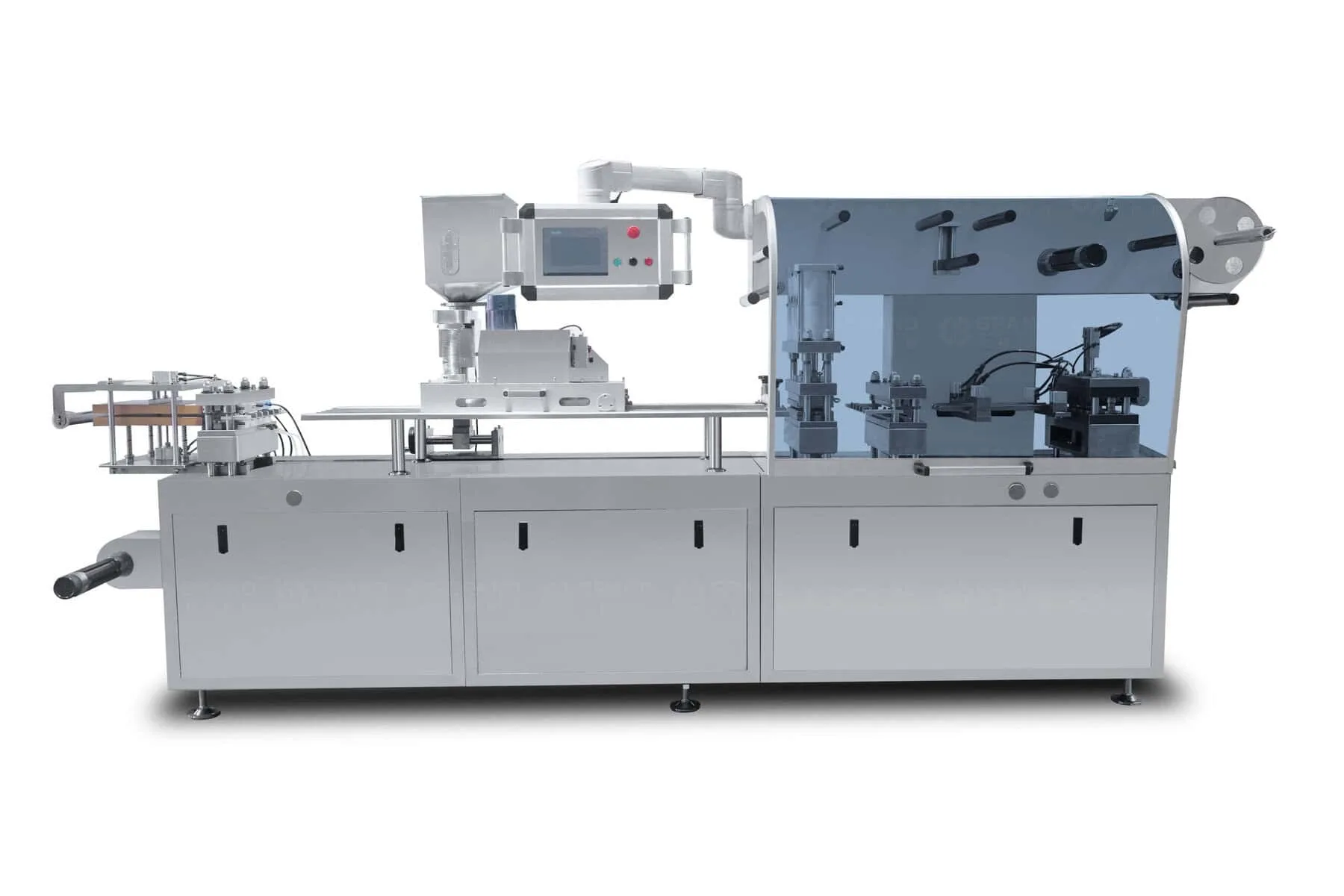

High Speed Blister Packaging Machine DPP-260Y
Suitable for blister packaging of medicines and tablets.
Grand hot-selling blister machine series.
Production capacity(pcs/h) : Al-plastic: < =300000; Al-Al: < =100000
Features
High-precision worm gear reducer for larger torque and longer service life.
Air and water pressure controllers with alarms for low pressure.
Main station bearings imported from Japan NSK for reliability.
Solenoid and vacuum valves from Japan SMC for high quality.
Silicone disc brushes improve feeding rate, increasing medicine filling by 20-30%.
Hot extrusion steel character printing for clearer and more efficient results.
High Speed Blister Packaging Machine Specifications
| Punching speed (aluminum-plastic): | 60-100 times/min |
| Maximum forming area: | （240~360）×240mm |
| Maximum forming depth: | 14mm |
| Power supply and total power: | Three-phase five-wire 380V 50HZ（220V 60HZ）20~24KW |
| Gas consumption: | 0.06～0.09m³min（0.6～0.9Mpa） |
| Machine weight: | 4000~5000Kg |
| Machine dimensions: | 6350×1500×2000mm |
High Speed Blister Packaging Machine Details

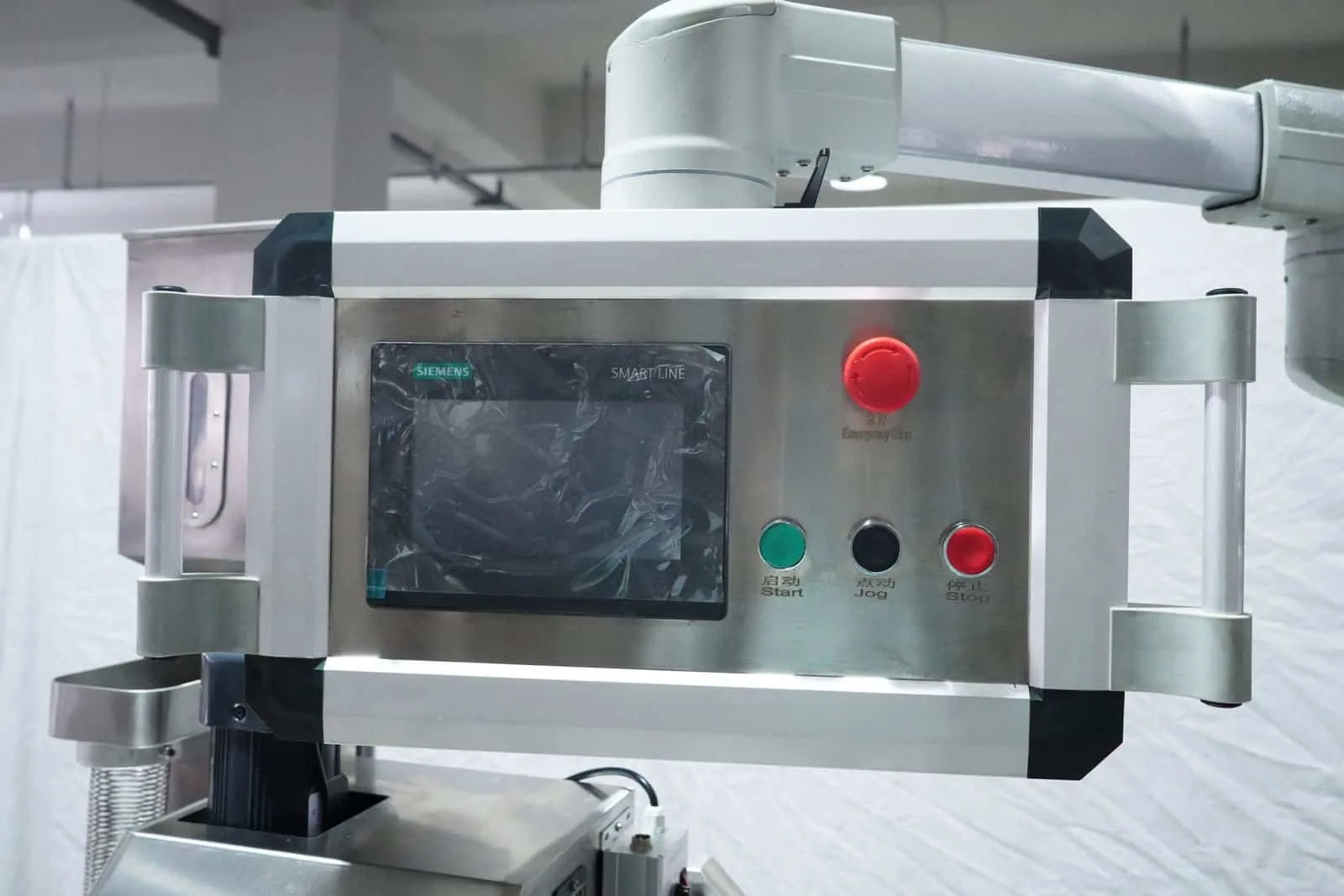

Operation screen

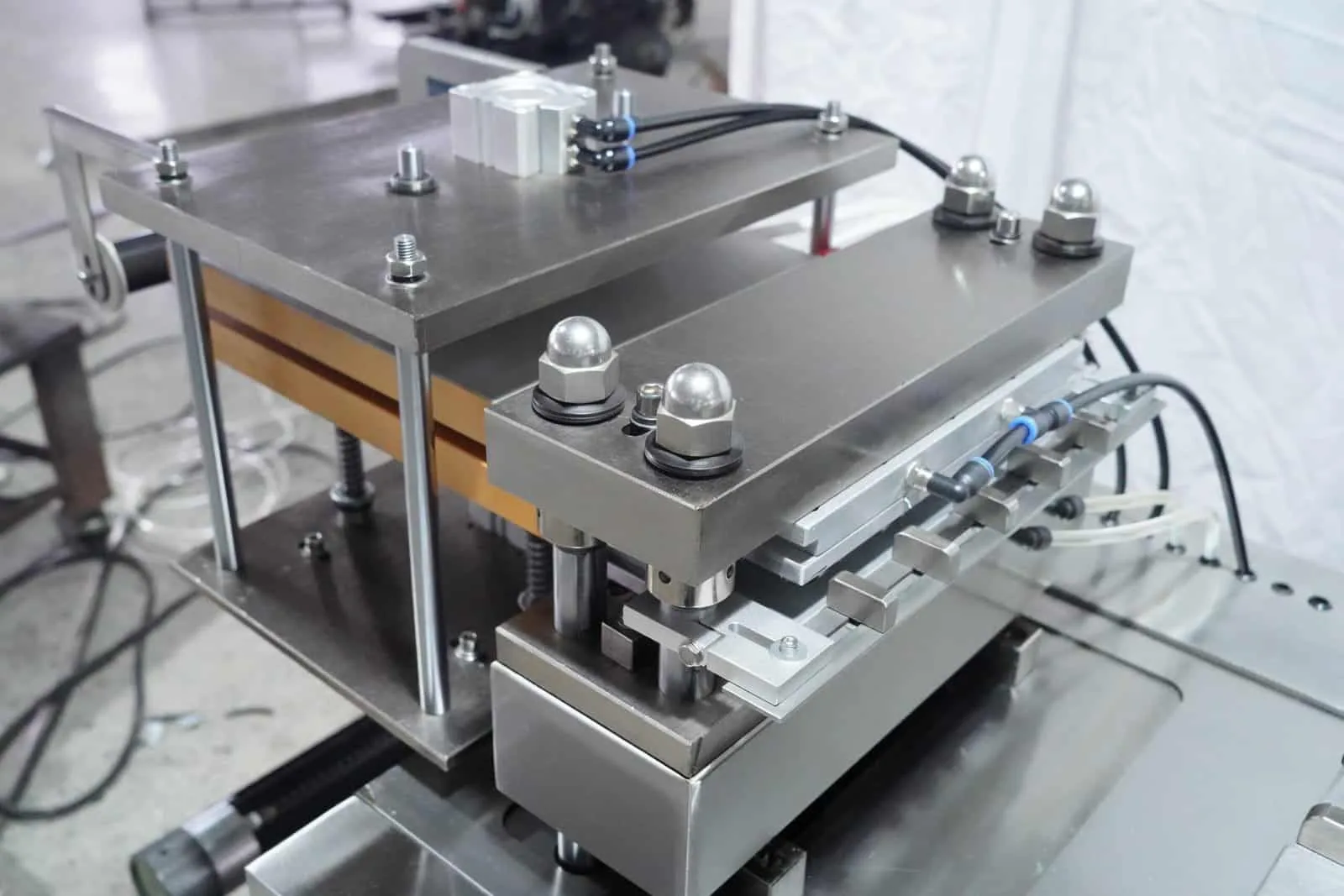

Forming

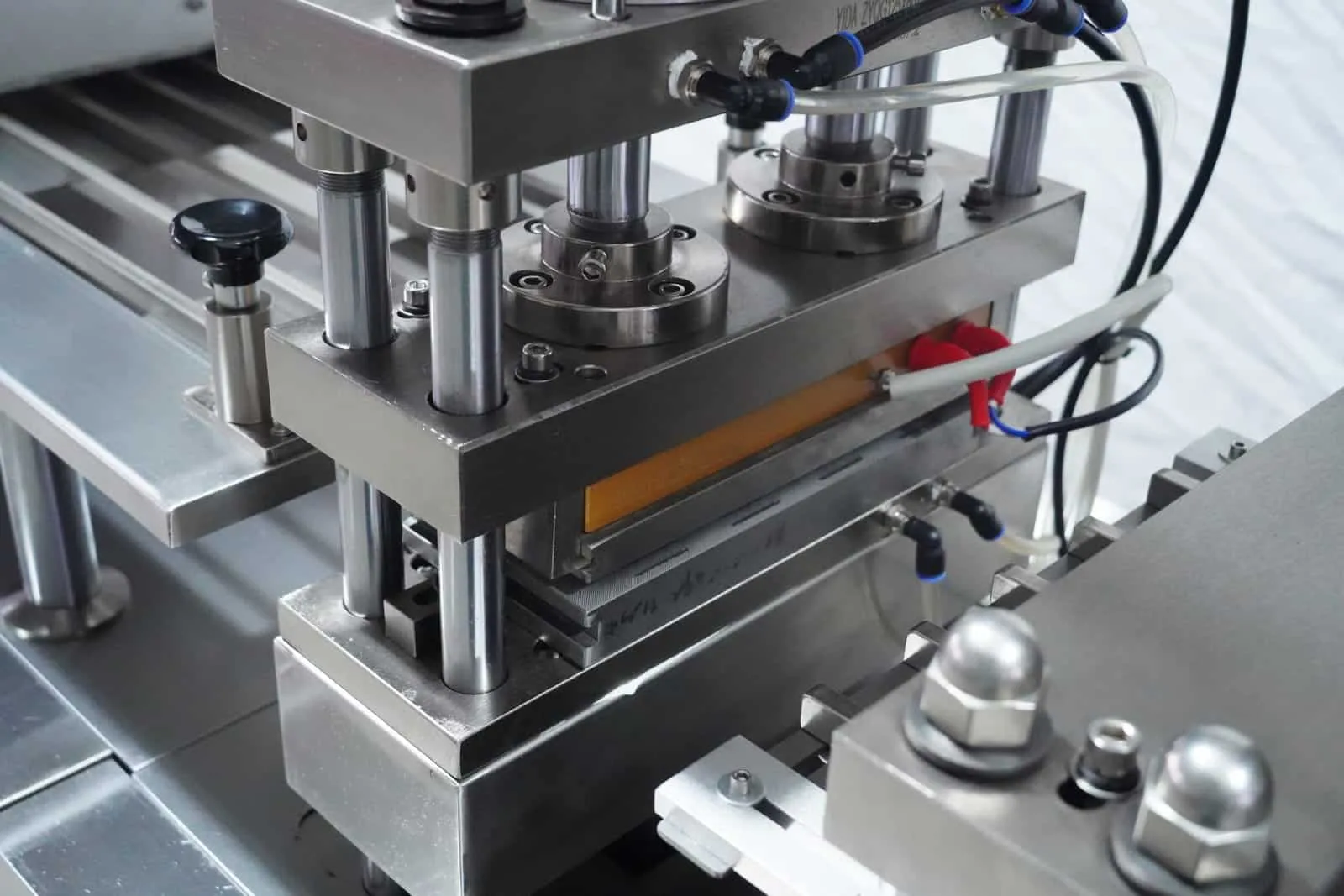

Heat sealing mold
