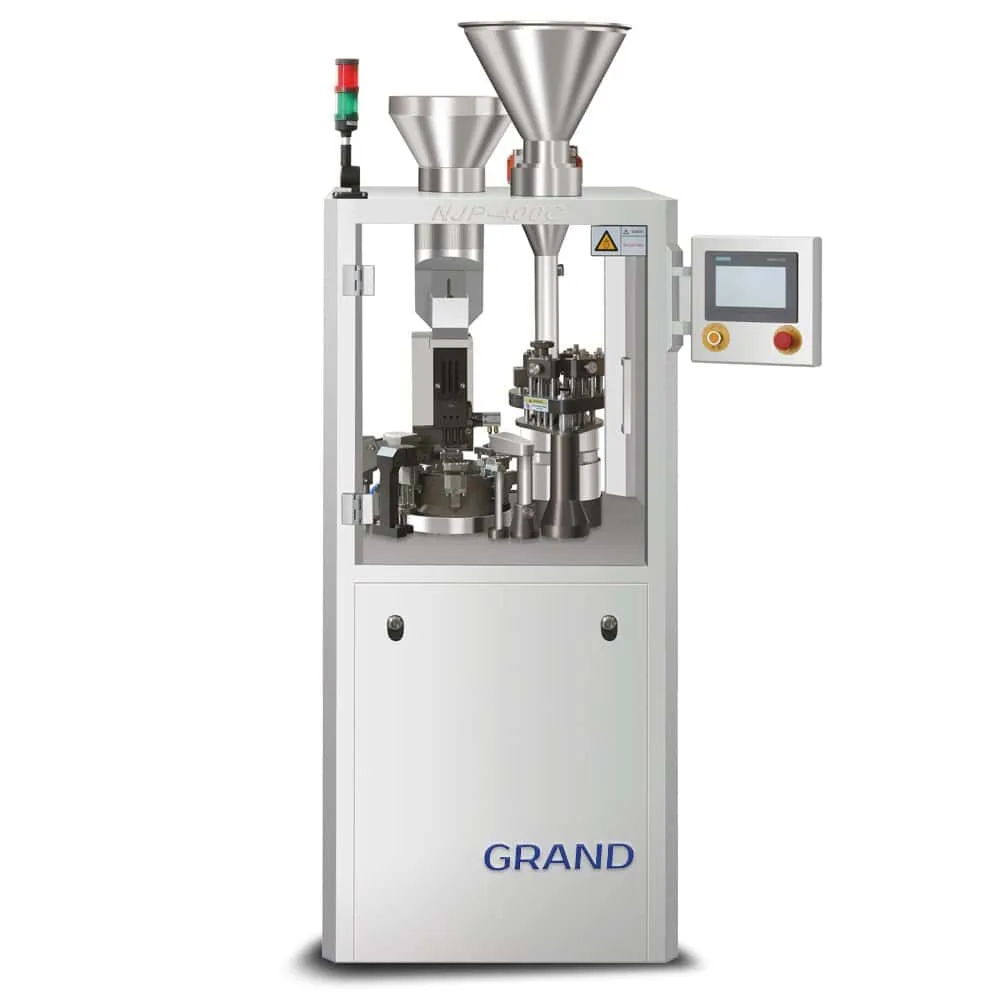

NJP-400 Fully Automatic Capsule Filling Machine
The NJP-400 adopts intermittent rotary operation with a precise hole disc to guarantee filling accuracy. It automates the processes of capsule feeding, separation, filling, ejection, sealing, and export.
Fully Automatic Capsule Filling Machine Features
High Efficiency & Output – The NJP-400 model delivers a production capacity of 24,000 capsules per hour, ensuring rapid and consistent output for large-scale manufacturing.
Precision Filling System – Equipped with 3-segment bores and an advanced vacuum extraction system, the machine ensures accurate powder dosing with minimal wastage.

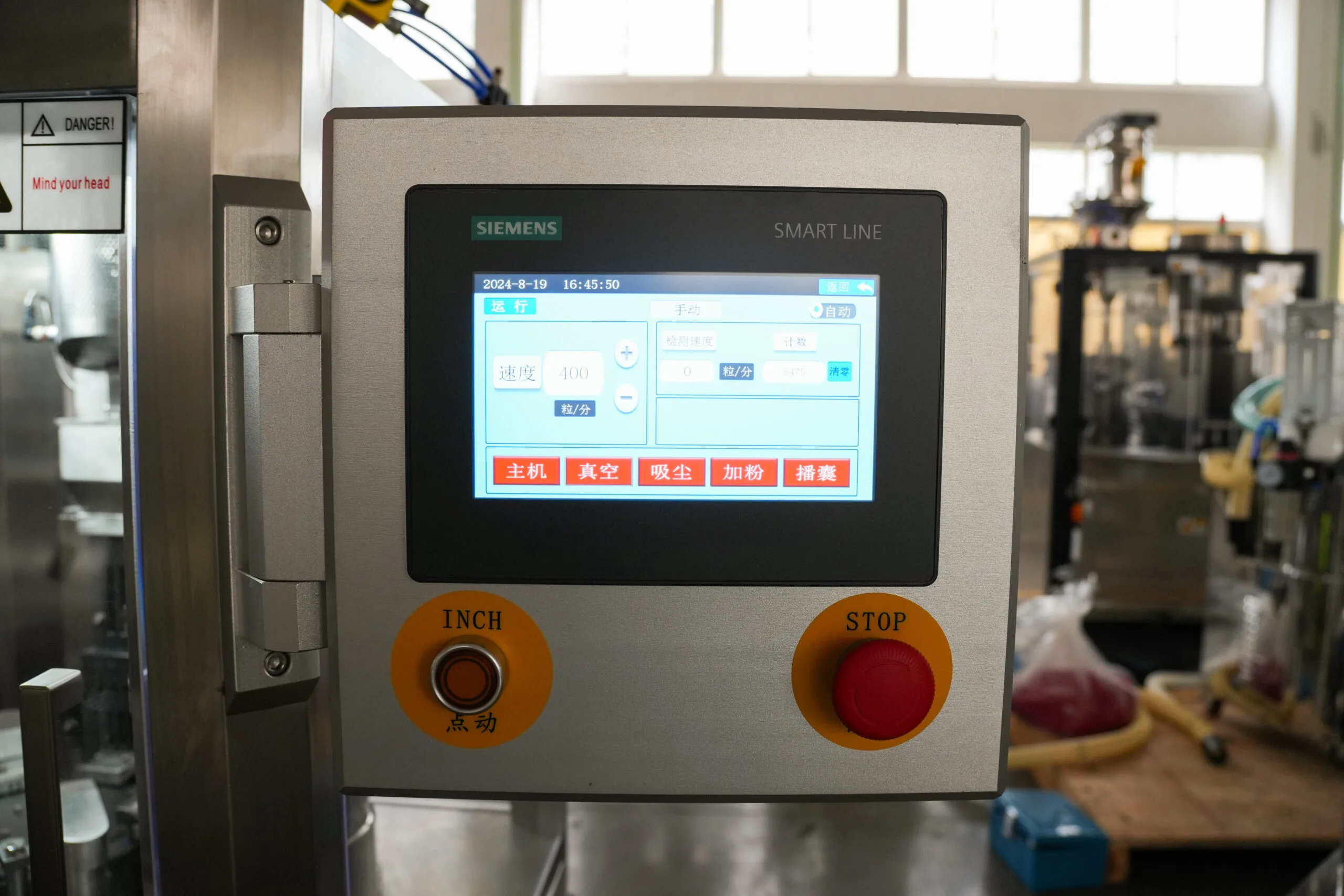

User-Friendly Operation – Designed with an intuitive control panel, allowing for easy parameter adjustments and seamless operation, reducing labor effort.
Robust & Durable Design – Built with high-quality stainless steel and a compact structure, ensuring stability, durability, and compliance with pharmaceutical industry standards.
Fully Automatic Capsule Filling MachineSpecifications
| Model: | NJP-400 |
| Output | 24000Grain/hour |
| Machine weight | 900Kg |
| Machine Dimensions | 760mm(+210)*785mm*1900mm |
| Power Supply | 380/220V 50Hz |
| Motor power | 4KW（Standard） |
| No.of segment bores | 3holes |
| Vacuum | Extraction rate30m3/h -0.03~-0.05Mpa |
| Dust | 16Kpa 180m3/h |
| Noise | <75DB（A） |
| Making rate | Empty capsules99.8% Full Capsule99.8% |
| Suitable for Capsule | 000、00，0，1，2，3，4，5# |
| Filling error | ±3.5%-±4.5% |
Machine Details
New material hopper
The butterfly valve with vibration solves poor powder flow issues, especially for Chinese herbal medicines. It's easy to disassemble and clean.
Capsule sowing rack
The guide rail transmission ensures high precision and long service life.
Side view of the capsule frame
Its closed design prevents waste capsules and dust, maintaining stability and accuracy.
Lock bag
Providing protection and preserving freshness while ensuring easy handling and storage.
Out of the bag
Easy access and efficient workflow during production.
Discharge material
Quick and efficient expulsion of product from machinery, streamlining the production process.
Fully Automatic Capsule Filling Machine FAQS
1What is the NJP-400 Fully Automatic Capsule Filling Machine?
The NJP-400 is a high-performance, fully automated capsule filling machine designed to streamline production. It achieves an output of 24,000 grains per hour, making it ideal for industrial-scale operations.
2What are the key technical specifications of the NJP-400?
This machine weighs 900Kg and measures 760mm (+210) x 785mm x 1900mm. It operates on a 380/220V 50Hz power supply and is powered by a standard 4KW motor, ensuring reliable performance.
3How many segment bores does the NJP-400 feature?
The NJP-400 is equipped with 3 segment bores, which are designed to facilitate efficient capsule filling through its automated process.
4What vacuum and dust extraction capabilities does the NJP-400 offer?
It provides a vacuum extraction rate of 30m³/h with a pressure range of -0.03 to -0.05Mpa. Additionally, the dust extraction system operates at 16Kpa with an airflow of 180m³/h, ensuring a clean production environment.
5What advantages does the NJP-400 offer in capsule filling operations?
The NJP-400 delivers high efficiency and precision with its automated design. Its robust build, advanced vacuum and dust extraction features, and high throughput minimize manual labor and enhance overall productivity in capsule production.
6How does the NJP-400 Fully Automatic Capsule Filling Machine maintain filling consistency?
The NJP-400 delivers high efficiency and precision with its automated design. Its robust build, advanced vacuum and dust extraction features, and high throughput minimize manual labor and enhance overall productivity in capsule production.
7What advantages does the NJP-400 offer in capsule filling operations?
The NJP-400 delivers high efficiency and precision with its automated design. Its robust build, advanced vacuum and dust extraction features, and high throughput minimize manual labor and enhance overall productivity in capsule production.
8What advantages does the NJP-400 offer in capsule filling operations?
The NJP-400 delivers high efficiency and precision with its automated design. Its robust build, advanced vacuum and dust extraction features, and high throughput minimize manual labor and enhance overall productivity in capsule production.
9What advantages does the NJP-400 offer in capsule filling operations?
The NJP-400 delivers high efficiency and precision with its automated design. Its robust build, advanced vacuum and dust extraction features, and high throughput minimize manual labor and enhance overall productivity in capsule production.
