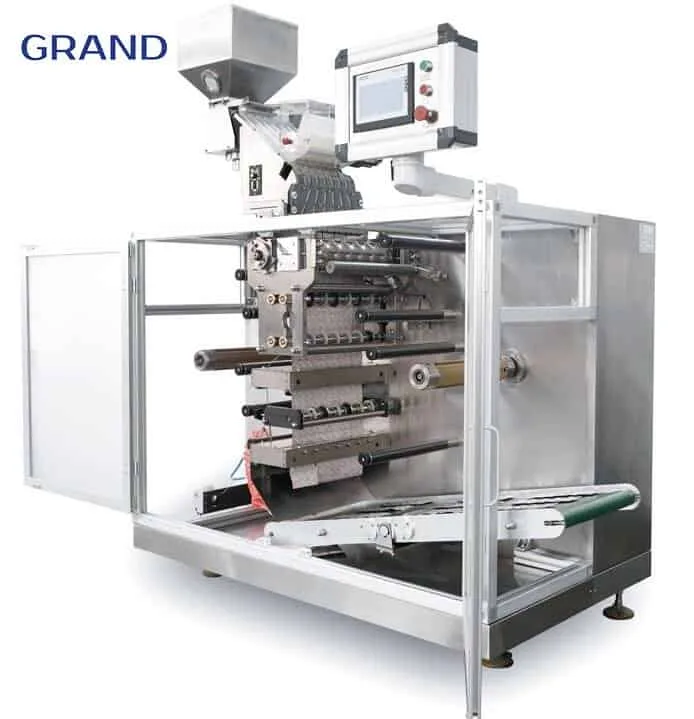

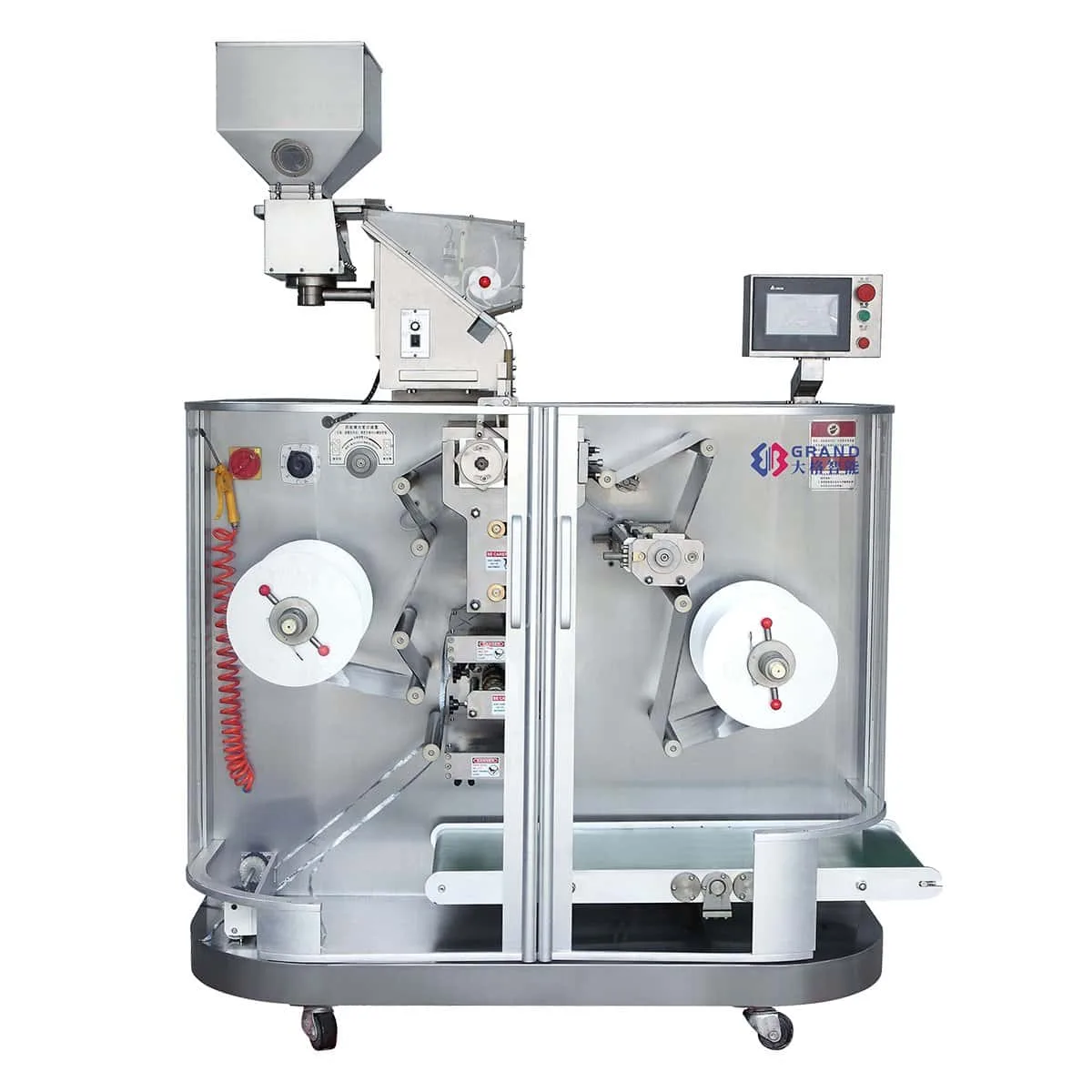

Automatic strip packing machine NSL-260

Automatic Strip Packing Machine NSL-260 by Grand，be characterized of advanced structure, high efficiency, low noise and easy to operate.

It utilizes frequency control to set travel at will，increase the vibration entire column feed mechanism and optical monitoring devices, it can automatic counting，and can Auto-complete filling, sealing, tangent, batch number, cut at high-speed operation.

Get a quick quote ！

Features

1.Advanced Programmable Control：
The strip packing machine integrates a programmable controller and touch screen for precise control, ensuring seamless automatic filling of coated and uncoated tablets or capsules into aluminum strips.

2.Customizable Strip Length & Easy Adjustment：
The strip sheet length can be modified directly via the touch screen, allowing for quick format changes. Simply adjust rollers and remove cutters to accommodate different strip sizes.

3.Precision Temperature Control for Secure Sealing：
The machine features a temperature control module and K-type detector, maintaining a stable heating temperature on the sealing roller to enhance leak-proof sealing and product integrity.

4.Stepless Speed Regulation for Efficiency：
A frequency-controlled main motor provides stepless speed regulation, simplifying mechanical operations and ensuring smooth and efficient strip packaging.

Why Choose Us ？

Our strip packing machine is designed for high-precision pharmaceutical packaging, ensuring efficient and reliable sealing for tablets and capsules.

With programmable controls, customizable strip lengths, and advanced temperature regulation, it guarantees smooth operation and minimal material waste.

We offer a one-year warranty and lifetime after-sales support, providing you with expert assistance whenever needed. Choose our strip packing machine for efficiency, durability, and superior packaging quality.

Automatic strip packing machine is made of welded stainless steel plate SUS304, the Machine is designed reasonable and every machine configured with safe operation of protective PC board door cover which is according to “GMP” demands. It enhanced aesthetics and practicality of products.

Specifications

Specification	Details
Capacity	30-66 thousand pcs/hour
Punch frequency	10~30 times/min
Packaging area	250mm × any length
Main motor power	0.75KW
Material roll DIA	250 mm
Total power	3.75KW
Machine Dimension (L×W×H)	1600×850×1900 mm
Air compressor	0.5Mpa
Packing Dimension (L×W×H)	1800×1100×2100 mm
Gross weight	1100 kg

Machine Details

Feeding

Vibrating feeding mechanism

Cutting

Equipped with photoelectric monitoring device

Tangent

The number of punching plates can be freely set

FAQs About Automatic Strip Packing Machine

1What is the warranty period for the strip packing machine?

Our automatic strip packing machine comes with a one-year warranty, ensuring coverage for manufacturing defects and essential repairs. Additionally, we provide lifetime after-sales service for ongoing support.

2How does the strip packing machine ensure packaging accuracy?

The machine integrates programmable controllers and touch screen controls to precisely fill tablets and capsules into strip packaging. The adjustable strip length allows for customization to meet different production requirements.

3What kind of maintenance does the strip packing machine require?

Routine maintenance includes cleaning sealing rollers, lubricating moving parts, and checking temperature sensors. Our lifetime after-sales service ensures expert guidance whenever needed.

4Can the machine handle different sizes of strip packaging?

Yes! You can easily adjust the strip length via the touch screen, and minor modifications to the rollers and cutters allow seamless adaptation to various strip packaging formats.

5What support do you offer after the warranty period?

Even after the one-year warranty, we continue to provide lifetime technical support, troubleshooting assistance, and replacement parts to keep your strip packing machine running efficiently.

6Is the strip packing machine suitable for different types of pharmaceutical products?

Yes! Our strip packing machine is designed to handle a wide range of tablets, capsules, and coated or uncoated pills. The adjustable settings allow seamless customization to meet various pharmaceutical packaging needs.

7How does the machine ensure a secure and airtight seal?

The strip packing machine uses advanced temperature control technology with a K-type detector, ensuring stable heat distribution across the sealing rollers. This enhances the leak-proof sealing quality, protecting the packaged products from moisture and contamination.
