Automation in Gelatin Capsule Manufacturing is Becoming Mainstream

Overcoming Traditional Manufacturing Challenges

In the past, gelatin capsules were produced using manual or semi-automatic methods. Although these approaches met basic needs, they had significant limitations:

• Limited Production Speed
  Manual and semi-automatic systems often struggle to achieve high production volumes. When orders increase, production cycles become longer and costs rise.

• Inconsistent Product Quality
  Human intervention and variable environments often result in inconsistency with gelatin capsules. Maintaining uniform weight, intact capsule shells, and precise capsule size was a constant challenge.

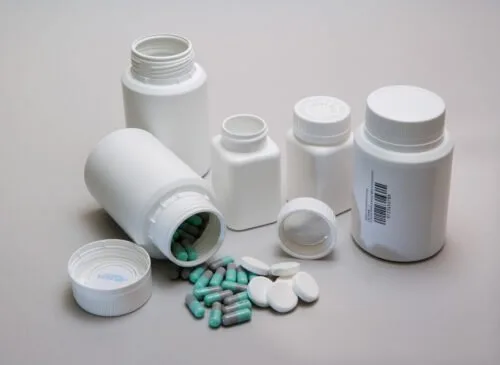

Grand's automated machinery fills hard gelatin capsules

• High Maintenance and Cleaning Costs
  Traditional equipment is generally not designed for efficient cleaning and rapid disassembly. This leads to increased downtime and higher maintenance costs.

These challenges have driven manufacturers to seek better solutions. Automation provides a modern approach that overcomes these limitations while ensuring reliability and high performance.

The Rise of Automated Production

Modern capsule filling machine and capsule making machine systems address the shortcomings of traditional methods. Fully automated systems employ advanced control techniques that monitor and adjust every step of the process. This results in significant benefits:

• Enhanced Production Efficiency
  Automation allows for the swift completion of tasks—from empty shell supply and powder preprocessing to filling and sealing—in a streamlined manner. This is especially beneficial for high-volume production lines where every second counts.

• Consistent Quality
  Automated systems precisely control every process stage. Whether it’s managing the physical dimensions of the capsule shells or ensuring accurate dosage within each capsule, the outcome consistently meets rigorous international standards.

• Reduced Manual Intervention
  With automated workflows, systems are designed to perform self-cleaning and quick disassembly. This minimizes the risk of cross-contamination, makes maintenance easier, and allows for rapid equipment turnover.

• Compliance with cGMP Standards
  Global regulatory demands require that production systems conform to current Good Manufacturing Practices (cGMP). Automation is designed with facility layout, personnel flow, and environmental monitoring in mind, ensuring comprehensive quality control.

Basic Principle of Capsule Filling Machine

1. Capsule Rectification and Orientation Empty capsules are first fed from a hopper into a rectifying device. This mechanism mechanically orients all capsules into a uniform direction, typically with the body down and the cap up, before inserting them into the die holes of a rotary turret.

2. Capsule Separation The turret rotates to the separation station. Here, a vacuum system is most commonly used. A vacuum is applied from below the die hole, pulling the longer capsule "body" securely into the lower segment. Simultaneously, pins or a plate separates the "cap" into the upper segment. The two halves are now held apart in the upper and lower turrets.

3. Material Dosing and Filling This is the most critical stage. The lower turret, carrying the open capsule bodies, rotates to the filling station. The most prevalent method is the Tamping Pin (or Dosator) system:

• A powder bowl contains the fill material. A dosing disc with a series of holes sits within the powder.
• A set of tamping pins repeatedly compacts the powder inside these holes, forming a precise "slug" or "plug" of a specific density and volume.
• This accurately measured powder slug is then transferred and ejected into the waiting capsule body. This method ensures high accuracy and consistency of the fill weight.

4. Rejection of Defective Capsules Before closing, many advanced machines have a station that uses sensors to detect and reject any capsules that were not properly separated or filled, ensuring the quality of the final batch.

5. Capsule Closing and Locking The upper and lower turrets, holding the caps and filled bodies respectively, are brought back into perfect alignment. The caps are then pushed back onto the bodies. A final set of pins applies firm pressure to completely close the two halves, engaging the capsule's built-in locking rings to create a secure, tamper-evident seal.

6. Ejection and Polishing The locked, finished capsules are ejected from the turret into a collection chute. Often, they are then passed through a capsule polisher to remove any residual powder from the exterior shell, ensuring a clean final product.

How Precise Filling is Achieved

Automated gelatin capsule manufacturing isn’t just about going digital—it’s about optimizing every production step. Key stages include:

1. Empty Shell Handling and Storage
   Advanced systems ensure that capsule shells are stored under optimal conditions, protecting them from temperature and humidity fluctuations. Modern warehousing solutions use precise metrics and barcode management, ensuring consistency by sourcing shells from the same batch.

2. Powder Preprocessing and Weighing
   Automated machines use high-precision measuring systems to guarantee that each capsule’s filling meets the exact formulation. Whether the powder is coarse or fine, the system dynamically adjusts the flow, achieving the perfect fill every time.

3. Controlled Filling Process
   Utilizing cutting-edge sensors and closed-loop feedback, automated systems continuously monitor each capsule’s weight during filling. This high level of precision ensures uniform dose content in every gelatin capsule produced.

4. Sealing and Quality Inspection
   Automated sealing mechanisms ensure a tight, secure closure on each capsule while integrated inspection systems detect any imperfections. Automated quality control also verifies that every capsule’s capsule size meets the set criteria, maintaining high standards across the production run.

Grand’s Leading Role in Automation

Grand's automated machinery can fill liquid and hard gelatin capsules

Amid fierce market competition, Grand’s automated capsule filling and manufacturing machines stand out. With superior technology and efficient performance, Grand has set industry benchmarks in automated capsule production. Key features of Grand’s systems include:

• Advanced Technical Design
  Grand machines are engineered to address consistency and quick changeover requirements. High-precision instruments monitor the process in real time, substantially increasing the reliability of the capsule filling machine during operation.

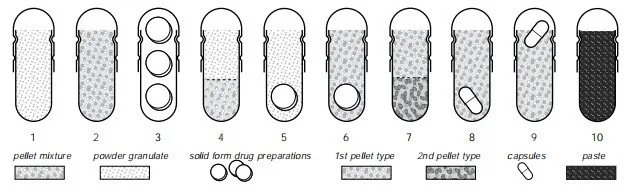

Liquid hard gelatin capsules and powder capsules

• High Adaptability and Flexibility
  Their systems can adjust to various capsule size requirements. Whether it’s small or large capsules, Grand machines can swiftly accommodate different product lines, making them ideal for both single-product and multi-product production environments.

• Superior Maintenance and Cleaning Capabilities
  Designed with modular cleaning and rapid disassembly features, Grand’s automated systems minimize downtime and simplify long-term maintenance. This user-friendly design is crucial for keeping production lines running seamlessly.

Grand's fully automatic capsule filling machine

• Compliance with Global Quality Standards
  Grand’s products meet strict cGMP requirements and undergo rigorous validation testing. Their reliable performance supports both domestic production standards and international markets, making them a preferred choice for leading pharmaceutical and supplement companies.

The Impact of Automation on the Future

The rise of automated gelatin capsule production is not just a technological advancement—it is reshaping the entire pharmaceutical manufacturing landscape. Here are some of the key impacts:

• Cost Efficiency and Economic Benefits
  Although the initial investment in automated systems is high, the resulting efficiency and low error rates significantly reduce long-term production costs. Consistent high-quality output boosts market competitiveness and drives profitability.

• Enhanced Responsiveness for Manufacturers
  Automated production lines can quickly adapt to shifting market demands. Faced with new formulations or varying product specifications, these systems adjust on the fly, enabling manufacturers to innovate and respond swiftly.

• Data-Driven Decision Making
  Automation generates vast amounts of real-time data. This information is invaluable for making informed decisions in quality control and production scheduling, leading to more precise and efficient management practices.

• Sustainable and Eco-Friendly Production
  Automation not only improves production efficiency but also reduces resource consumption and waste. Precise dosing and zero-error filling lower raw material waste and improve overall resource utilization, supporting green manufacturing initiatives.

Conclusion

Automation in gelatin capsules manufacturing is setting a new industry standard. By leveraging state-of-the-art capsule filling machine and capsule making machine technology, manufacturers can enjoy an integrated solution that covers every step—from raw material handling to automated filling and sealing. Production processes now effectively address the nuances of capsule shells production and precise capsule size control. Grand’s automated systems lead the industry with unmatched design, operational flexibility, and superior maintenance capabilities.

Looking ahead, as the pharmaceutical and supplement markets continue to grow, automation will further permeate production lines, driving both efficiency and quality. Companies striving for high consistency and lower production costs are increasingly turning to advanced automation. Embracing automated gelatin capsule manufacturing is not only a technological upgrade—it’s a strategic move toward a future of digital, smart, and sustainable production.

In short, automation is transforming how gelatin capsules are made, making production faster, more reliable, and more economical. For any business focused on product quality and operational excellence, partnering with leaders like Grand in advanced automated systems will be key to meeting tomorrow's challenges head-on.
