Where to Source Capsule Filling Machines? | Complete Buyer’s Guide
The global pharmaceutical and nutraceutical industries are expanding at an unprecedented rate. As market demands shift toward higher production volumes and stricter quality control, facility managers and procurement officers face a critical decision: how to effectively scale their manufacturing processes. At the heart of this scaling effort lies the capsule filling machine. Whether you are transitioning from manual operations or upgrading legacy equipment, selecting the right machinery dictates your production efficiency, product consistency, and ultimate profitability.
In this comprehensive guide, we explore the intricate details of modern encapsulation technology, the factory environments that produce these precision instruments, and exactly where to source the best equipment for your specific production line needs.
What is an Automatic Capsule Filling Machine?
An automatic capsule filling machine is a highly engineered piece of industrial equipment designed to automatically feed, separate, fill, lock, and eject hard gelatin or vegetarian capsules. Unlike semi-automatic models that require constant operator intervention, a fully automatic system runs continuously, dramatically increasing throughput and reducing the margin for human error.

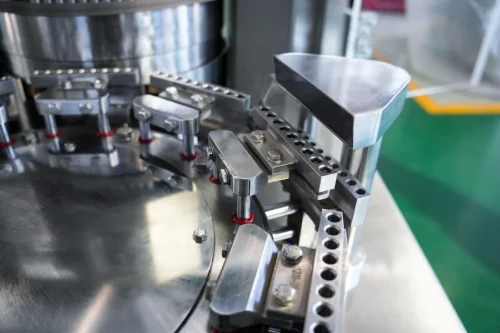

Rejection function of the Grand capsule filling machine

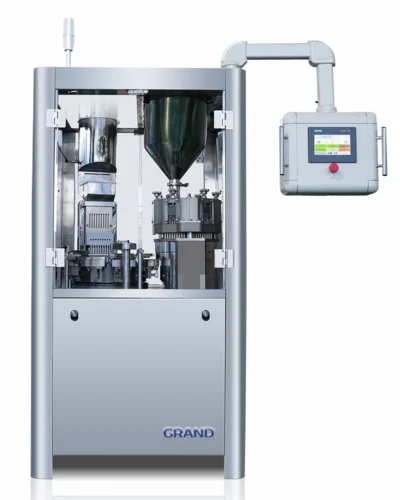

To remain competitive, modern facilities require a robust capsule making machine capable of handling diverse powder formulations, pellets, and granules. Advanced models, such as the NJP-1200C, operate using intermittent rotary motion and a highly accurate dosing disc filling mechanism. These machines are the workhorses of pharmaceutical manufacturing, capable of producing tens of thousands of precisely filled capsules every hour while maintaining strict weight variation tolerances.
Craftsmanship Details: Inside a Grand Capsule Filling Machine
When you source a capsule filler, you are investing in precision engineering. The craftsmanship behind Grand capsule filling machines focuses on durability, hygiene, and operational intelligence. Let us examine the technical specifications and performance features of the NJP-1200C to understand what high-end craftsmanship looks like in practice.
Technical Specifications of the NJP-1200C
| Specification Category | Technical Data |
| Maximum Output | 72,000 capsules/hour |
| Machine Weight | 1,100 kg |
| Machine Dimensions | 870 (+339) mm × 940 (+339) mm × 2000 mm |
| Total Power | 5.6 kW (380/220V, 50Hz) |
| Number of Segment Bores | 9 bores |
| Filling Success Rate | Empty capsules: 99.8%; Filled capsules: 99.8% |
| Suitable Capsule Sizes | Sizes 000, 00, 0, 1, 2, 3, 4, 5 |
| Filling Weight Variation | ±3.5% – ±4.5% |
| Noise Level | <75 dB(A) |
Key Performance Features
Fully Enclosed Ten-Station Rotary Table: Grand machines utilize a fully enclosed rotary table design. This craftsmanship choice ensures the internal mechanisms remain completely free from powder contamination. It makes the machine exceptionally easy to clean and maintain, ensuring smooth operation and high precision across millions of cycles.
Advanced 3D Dosing Disc Adjustment: The dosing disc utilizes a three-dimensional adjustment mechanism. This allows operators to uniformly adjust the gap between the dosing disc and the copper ring. This precise calibration minimizes powder leakage and guarantees consistent filling weight accuracy, which is paramount for pharmaceutical compliance.
Modular Powder Filling Mechanism: The filling station features a modular design. When operators need to clean the machine or swap parts for different formulations, the modular nature allows for rapid disassembly and reassembly, minimizing costly downtime.
Vibration Reduction Drive: The NJP-1200C is equipped with a high-precision, high-specification drive mechanism. This heavy-duty system significantly reduces operating vibration. Lower vibration not only keeps the noise level below 75 dB(A) but also greatly enhances the machine's overall stability and operational lifespan.
Intelligent Defective Capsule Rejection: Grand machines feature highly polished stainless-steel rejection mechanisms. If a capsule fails to separate properly, the machine automatically identifies and ejects the faulty capsule through a dedicated chute, preventing defective products from reaching the finished batch.
Smart HMI Integration: Operators control the entire process through an aesthetically pleasing, dust-proof Human-Machine Interface (HMI) powered by imported brand electronics (such as Siemens). Advanced control principles ensure the precise execution of all programmed operations and comprehensive safety protection functions.
Factory Tour: The Grand Intelligent Equipment Manufacturing Environment

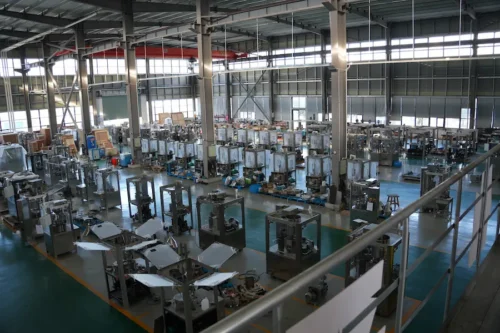

The capsule filling machines at the Grand factory are neatly arranged.
Knowing where to source your equipment requires understanding how it is built. The Grand capsule filling machine factory environment represents the pinnacle of modern industrial manufacturing.

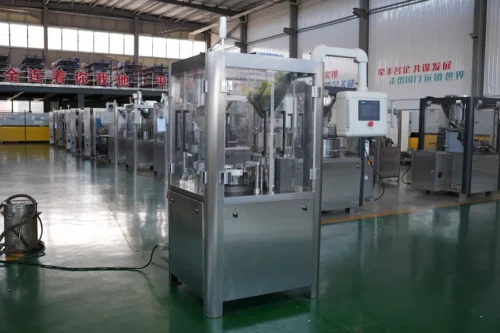

Walking onto the factory floor, you immediately notice the rigorous organization and cleanliness required to produce pharmaceutical-grade machinery. Rows of stainless steel frames stand in precise alignment, moving through sequential stages of assembly. The environment is heavily standardized, reflecting a commitment to strict quality control protocols.

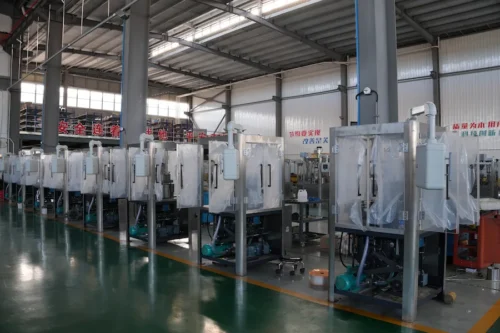

Every automatic capsule filling machine undergoes rigorous testing before dispatch. Technicians run the equipment through simulated production cycles, testing the vacuum systems, the dosing disc accuracy, and the rejection mechanisms. This pristine, highly systematic manufacturing environment guarantees that when a machine arrives at your facility, it is ready to integrate seamlessly into your production floor and deliver a 99.8% filling success rate right out of the box.
What Spare Parts Are Needed for Capsule Filling Machines?

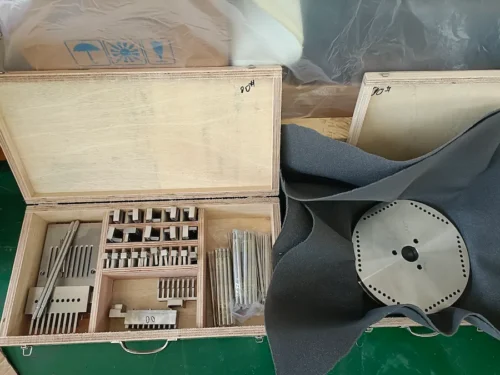

NJP1200 Complete Mold Set
To maintain peak operational efficiency, facility managers must keep specific spare parts on hand. A high-quality machine offers flexibility, allowing you to run different capsule sizes simply by swapping out the change parts (molds). For example, transitioning your equipment to act as a 00 capsule machine or a size 0 capsule filling machine requires a specific set of customized components.
When you purchase a machine, it typically arrives with a dedicated wooden storage box containing a complete set of precision-engineered molds. These parts are crafted from high-grade materials and polished to ensure flawless interaction with the gelatin or vegetarian capsule shells.
Essential Spare Parts and Molds
| Part Name | Function within the Machine | Replacement / Maintenance Frequency |
| Dosing Disc | Determines the volume and weight of the powder compressed into the capsule slug. | Replace when changing dosage volumes or if significant wear occurs. |
| Capsule Filling Tray / Mold Segments | Holds the individual capsule caps and bodies during the filling process. | Change when switching capsule sizes (e.g., from Size 0 to Size 00). |
| Tamping Pins | Compresses the powder inside the dosing disc to form a solid powder slug. | Inspect monthly; replace if bent or scratched to maintain weight accuracy. |
| Alignment Pins & Springs | Ensures the upper and lower segments align perfectly during the closing station. | Replace during annual preventative maintenance. |
| Copper Rings | Seals the gap beneath the dosing disc to prevent powder leakage. | Monitor for wear; replace when powder leakage increases. |
Having immediate access to a backup capsule filling tray and mold sets ensures that your production line never suffers from extended downtime during product changeovers.
Do Capsule Filling Machines Require a Vacuum Cleaner?
A common question among new facility managers is whether a capsule filler operates independently or requires auxiliary systems like a vacuum. The definitive answer is yes: high-performance capsule filling machines absolutely require integrated vacuum systems to function correctly.
The vacuum serves two critical, distinct purposes during the encapsulation process:
Capsule Separation: When the empty capsules enter the segment bores, a vacuum suction (operating at a rate of 48 m³/h and a pressure of -0.03 to -0.05 MPa) pulls the capsule body down while the cap remains in the upper segment. Without this precise vacuum pressure, the capsules will not separate, leading to misfeeds and high rejection rates.
Dust Extraction: Powder filling generates airborne particulates. A dedicated dust extraction system (operating at 20 kPa and pulling 210 m³/h) continuously pulls ambient dust away from the rotary table. This maintains the clean environment necessary for the mechanical parts to operate smoothly, prevents powder cross-contamination, and protects the health of the machine operators.
Therefore, integrating an industrial vacuum cleaner and a dust collector is a mandatory requirement for operating any fully automatic encapsulation machine safely and efficiently.
Expanding Your Setup: What Machines Are Included in a Capsule Production Line?
automatic capsule filling machine nip-1200
An automatic capsule filling machine is the centerpiece of your operation, but it does not work alone. To maximize efficiency, manufacturers build out comprehensive production lines. If you are setting up a new facility, you need to understand the complete equipment ecosystem.
The Complete Capsule Production Workflow
Upstream Processing (Powder Preparation):
High Shear Mixer Granulator: Mixes raw active pharmaceutical ingredients (APIs) with excipients to create a uniform blend.
Cone Miller / Sifter: Ensures the powder granules are a uniform size, which is critical for consistent filling weight.
Core Encapsulation:
The Capsule Filler: (e.g., the NJP-1200C) Automatically separates, fills, and locks the capsules.
Downstream Processing (Finishing & Packaging):
Capsule Polishing Machine: Removes static dust from the exterior of the filled capsules and automatically sorts out empty or half-filled capsules.
Blister Packaging Machine or Bottling Line: Secures the final product for retail and medical distribution.
Cartoning Machine: Boxes the blister packs or bottles for final shipment.
Can Fully Automatic Capsule Filling Machines Be Integrated with Blister Packaging Machines?
Yes, seamlessly. Modern pharmaceutical manufacturing relies on interconnected systems to minimize human contact with the product. A fully automatic capsule making machine is designed to feed directly into downstream packaging equipment.
Once the capsules are filled and ejected from the NJP-1200C, they typically pass through a capsule polisher. From the polisher's discharge chute, the clean capsules can be automatically conveyed via vacuum transfer or mechanical hoppers directly into the feeding system of an automatic blister packaging machine.
This integration is made possible through advanced PLC (Programmable Logic Controller) systems. The machines communicate with each other; for example, if the blister packaging machine pauses due to a foil roll change, it sends a signal to the capsule filler to temporarily pause production, preventing a bottleneck or spill on the conveyor line. This level of automation drastically reduces labor costs and increases the overall throughput of your facility.
Where to Source or Purchase the Best Capsule Filling Machines?
Sourcing heavy industrial machinery requires finding a partner who offers transparent manufacturing practices, robust after-sales support, and technologically advanced equipment. Purchasing directly from a reputable manufacturer rather than a third-party distributor guarantees that you receive direct engineering support, authentic spare parts, and the best possible return on investment.
When searching for the ideal equipment, look for manufacturers that provide comprehensive factory testing, detailed FAT (Factory Acceptance Testing) reports, and clear technical specifications. You need a machine that utilizes imported electrical components, offers precise 3D dosing adjustments, and features a fully enclosed rotary table for maximum hygiene.
If you are ready to upgrade your production capabilities with a high-speed, reliable, and precise encapsulation solution, you can explore our complete range of premium equipment.
[Discover our advanced encapsulation solutions and learn more about our fully automatic machinery here: https://grandpackmachine.com/capsule-filling-machine/automatic-capsule-filling-machine/]
By investing in superior craftsmanship and an intelligent design like the NJP-1200 series, you ensure that your production line operates smoothly, your filling weights remain perfectly accurate, and your business remains at the forefront of the pharmaceutical manufacturing industry.
