Fully Automatic Tablet Making Machine GZPK-26
Single punch tablet press machine U&M
Automatic Tablet Press Machine GZPK-660
The GZPK660 Series Machines are the most sophisticated products featuring a double pressing design, high-speed rotation, and double discharge holes for finished tablets, attaining a maximum production capacity ranging from 405,000 to 675,000 per hour.
The advanced interior and exterior designs enable mature pharmaceutical manufacturers to produce double-layer tablets, round tablets, and special-shaped tablets with remarkable precision, speed, and quality.
Features
Features
Incredible Capacity: The double pressing system, two-side discharging holes, and highly accurate components maximize the output production with the least labor.
Versatile Application: The tablet press is predominantly utilized for manufacturing tablet-shaped outputs in the pharmaceutical, chemical, food, and electronics industries.
Stainless Steel Construction with Enhanced Durability: Composed of stainless steel, the machine has a hardened layer coated on the surface, providing additional durability to the turret and preventing corrosion.
Enclosed Drive Devices: All drive devices are enclosed internally, which facilitates maintaining cleanliness. Regular weekly cleaning is advisable.
Auto-Close Safety Feature: The machine is furnished with an auto-close function that is activated when overpressure is detected, guaranteeing safe operation.
Specifications
| Model | GZPK-55 |
|---|---|
| Number of Stations | 55 |
| Maximum Output | 495,000 Tablets/Hour |
| Maximum Turret Speed | 75 RPM |
| Maximum Tablet Diameter | 16 mm |
| Maximum Irregular Tablet Length | 19 mm |
| Main Compression Force | 100 kN |
| Pre-compression Force | 20 kN |
| Maximum Filling Depth | 20 mm |
| Tablet Thickness Range | 0.5 – 8 mm |
| Upper Punch Penetration Depth | 2 – 6 mm |
| Main Motor Power | 11 kW |
| Machine Dimensions (L × W × H) | 1704 × 1380 × 1926 mm |
| Net Weight | 4,056 kg |
Machine Details

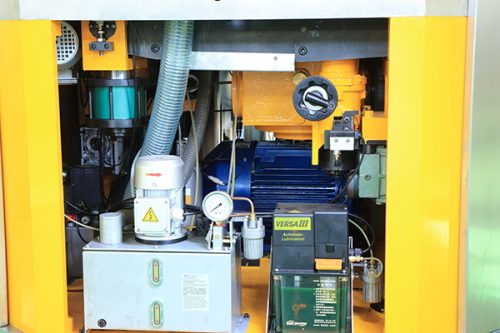

Electric Box

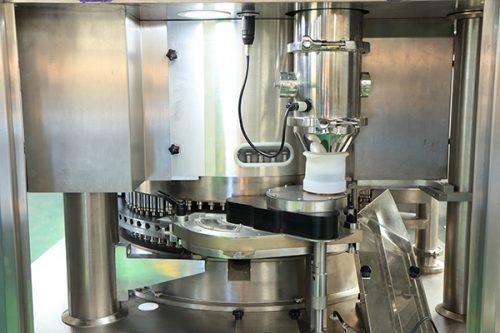

Force Feeding System
